Description
Brand - ZEN
Item Number - LM13-OP ZEN
Category - Linear Bearings (LM Series)
Type - Open
Ball Circuit (mm) - 4
Weight (kg) - 0.043

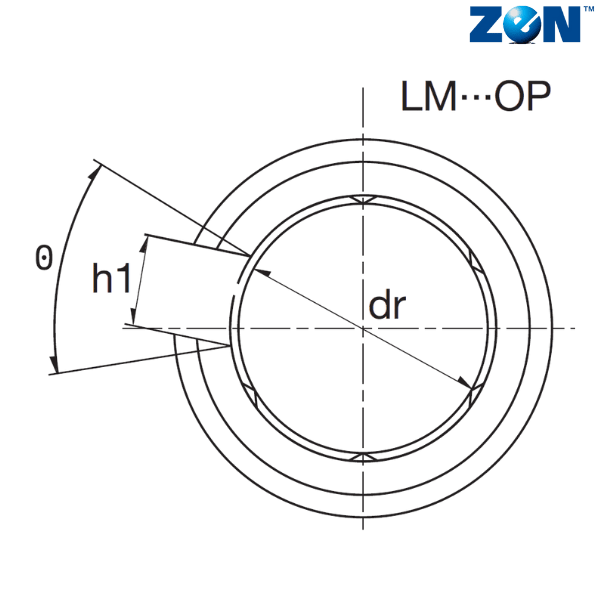

dr (mm) - 13
W (mm) - 1.3
D1 (mm) - 22
h (mm) - 1.5
h1 (mm) - 9
Tolerance (D) mm - 23
Tolerance (L) mm - 32
Tolerance (B) mm - 23
Radial Clearance - (-7)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
