Description
Brand - ZEN
Item Number - LM12-UU ZEN
Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 4
Weight (kg) - 0.0315

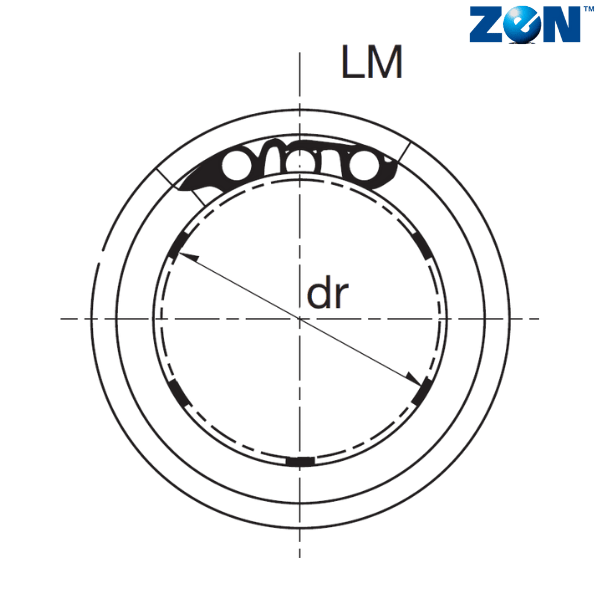

dr (mm) - 12
W (mm) - 1.3
D1 (mm) - 20
h (mm) - 1.5
h1 (mm) - 8
Tolerance (D) mm - 21
Tolerance (L) mm - 30
Tolerance (B) mm - 23
Radial Clearance - (-5)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
