Description
Brand - ZEN
Item Number - LM10-AJ ZEN
Category - Linear Bearings (LM Series)
Type - Adjustable
Ball Circuit (mm) - 4
Weight (kg) - 0.03

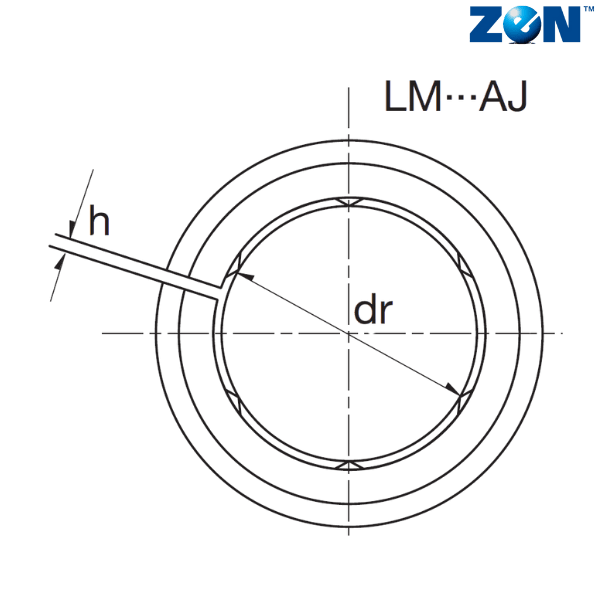

dr (mm) - 10
W (mm) - 1.3
D1 (mm) - 18
h (mm) - 1
Tolerance (D) mm - 19
Tolerance (L) mm - 29
Tolerance (B) mm - 22
Radial Clearance - (-5)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
