LM 90 NADELLA

Brand - NADELLA
Item Number - LM 90* NADELLA

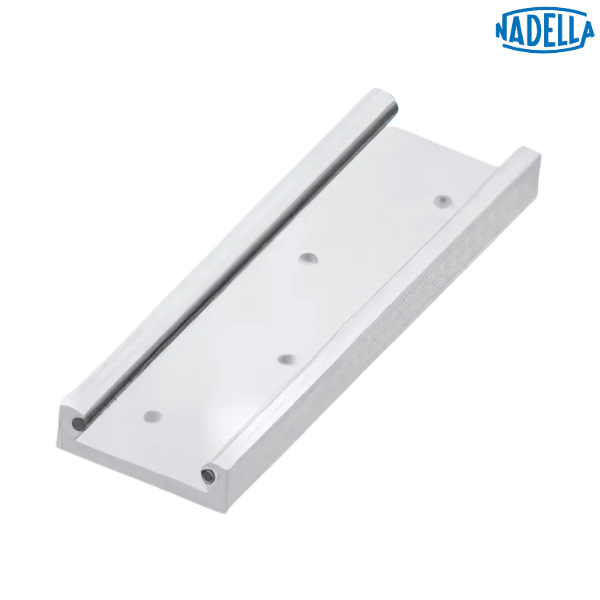

Category - Rail composed by an Aluminium Body and Two Shafts in Steel, with Two Internal Raceways

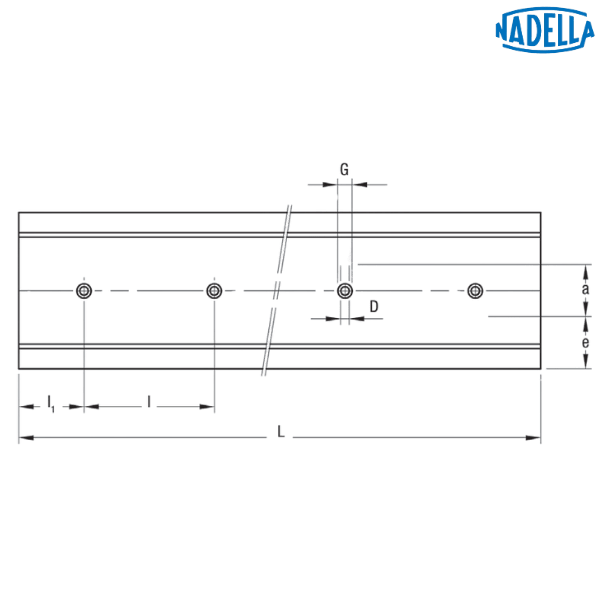

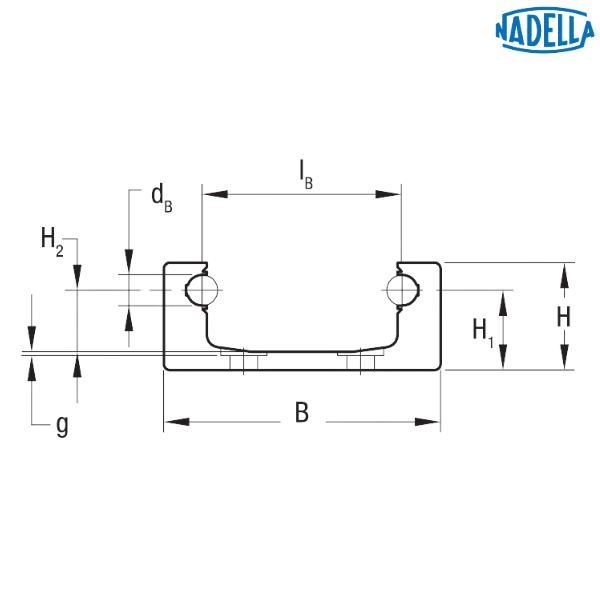

Principal Dimensions & Load Ratings (Metric):
Dimension (dB) - 10 mm
Dimension (IB) - 65 mm
Dimension (B) - 90 mm
Dimension (H) - 35 mm
Dimension (H1) - 26 mm
Dimension (H2) - 20 mm
Dimension (M) - 29 mm
Dimension (D) - 9 mm
Dimension (G) - 15 mm
Dimension (g) - 0.5 mm
Dimension (a) - 38 mm
Dimension (e) - 26 mm
Dimension (I) - 100 mm
Dimension (I1) - 50 mm
Moments of Inertia (Jx) *** - 16.4 cm⁴
Moments of Inertia (Jy) *** - 160.2 cm⁴
Weight - 4.7 kg/m
Maximum Dimension (L) **** - 6000 mm

Description of Prefix:
LM - Rail composed by an aluminium body and two shafts in steel, with two internal raceways for U-line system

Other salient points to be noted:
* Available with stainless steel shafts (suffix NX)
*** Inertia value based on equivalent aluminium yield 70000 N/mm² complete with guide rod
**** Longer rails are supplied in sections with ground butt joints and, on request, with pin connection

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chromium plated shafts (CH)
• Stainless steel shafts (NX)
• Pin based shaft connection (G)

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. LM 30 1720 SB
• For Finishes to drawing, Suffix will be NZ, e.g. LM 30 1720 NZ
• For Without holes, Suffix will be NF, e.g. LM 30 1720 NF

Standard Designation Examples:
• LM 30 650
• LM 30 1720
• LM 30 2600
• LM 30 3450

♦ ♦ Images are for representation purposes only
