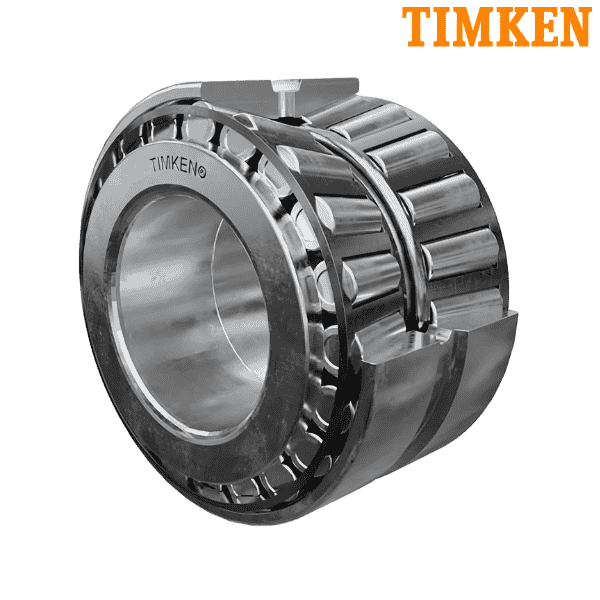

LL889049/LL889010D TIMKEN

Brand - TIMKEN
Item Number - LL889049/LL889010D TIMKEN
Also Known As - LL889049 - LL889010D
Category - Double Row Tapered Roller Bearing (TDO Type)

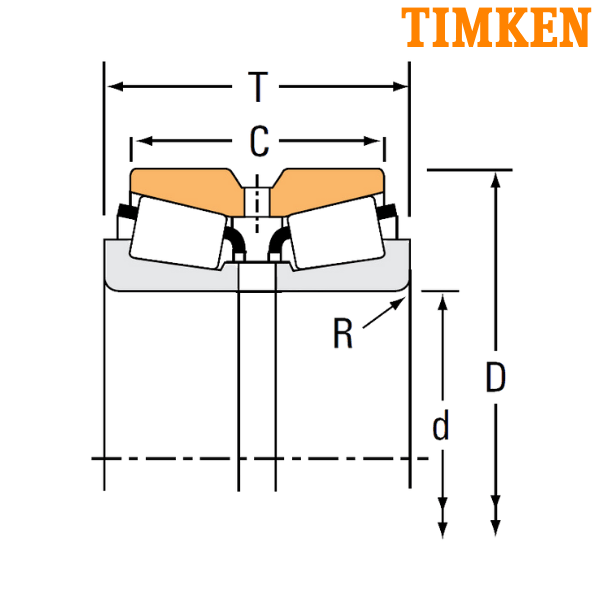

Bore Diameter (d) mm - 1270
Bore Diameter (d) inch - 50
Outer Diameter (D) mm - 1435.1
Outer Diameter (D) inch - 56.5
Bearing Width across Cones (T) mm - 146.05
Bearing Width across Cones (T) inch - 5.75
Double Outer Ring Width (C) mm - 101.6
Double Outer Ring Width (C) inch - 4
Dynamic Load Rating (C1) N - 3210000
Dynamic Load Rating (C1) lbf - 721000
Factor (e) - 0.57
Factor (Y1) - 1.18
Factor (Y2) - 1.76
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 478000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 107000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 467000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 105000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 832000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 187000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.02
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 1305
Cone Backface Backing Diameter (db) inch - 51.38
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 1405
Cup Frontface Backing Diameter (Da) inch - 55.31
Geometry Factor (G1) - 31422.7
Geometry Factor (G2) - 5654.9
Geometry Factor (Cg) - 0.4637
Bearing Weight (kg) - 311.03
Bearing Weight (lbs) - 685.75
Inner Part Number - LL889049
Outer Part Number - LL889010D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
