LL778149/LL778110 (LL778149XA / LL778110EA) TIMKEN

Brand - TIMKEN
Item Number - LL778149/LL778110 (LL778149XA / LL778110EA) TIMKEN
Also Known As - LL778149 - LL778110 (LL778149XA - LL778110EA)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 584.2
Bore Diameter (d) inch - 23
Outer Diameter (D) mm - 685.8
Outer Diameter (D) inch - 27
Width (T) mm - 107.95
Width (T) inch - 4.25
Width (C) mm - 79.375
Width (C) inch - 3.125
Dynamic Radial Rating (C1) N - 1390000
Dynamic Radial Rating (C1) lbf - 312000
Factor (e) - 0.44
Factor (Y1) - 1.54
Factor (Y2) - 2.3
Dynamic Radial Rating (90 million revolutions) (C90) N - 207000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 46500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 155000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 34800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 360000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 81000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 603
Backing Shoulder Diameter (db) inch - 23.74
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 669
Cup Frontface Backing Diameter (Da) inch - 26.34
Weight (kg) - 60.96
Weight (lbs) - 134.38
Inner Spacer - LL778149XA
Outer Spacer - LL778110EA
Inner Part Number - LL778149
Outer Part Number - LL778110
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

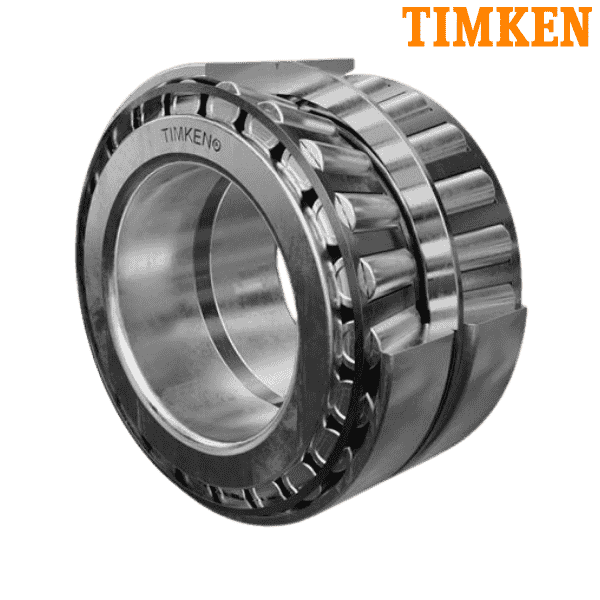

** Images are for representation purposes only
