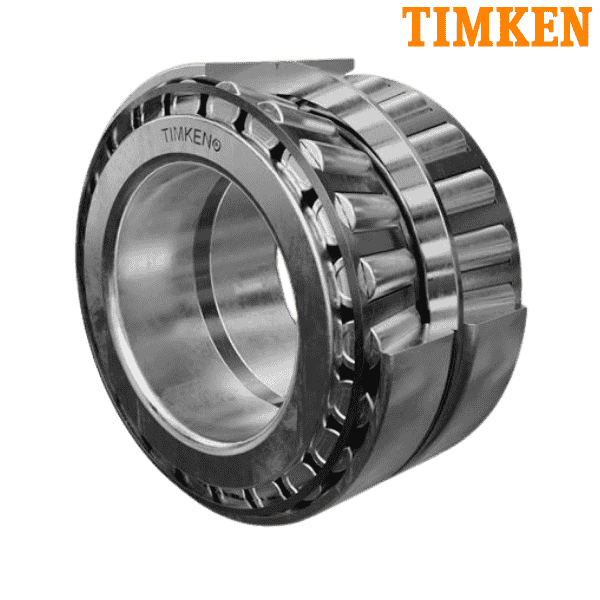

LL483449/LL483418 (LL483449XA / LL483418EA) TIMKEN

Brand - TIMKEN
Item Number - LL483449/LL483418 (LL483449XA / LL483418EA) TIMKEN
Also Known As - LL483449 - LL483418 (LL483449XA - LL483418EA)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 762
Bore Diameter (d) inch - 30
Outer Diameter (D) mm - 889
Outer Diameter (D) inch - 35
Width (T) mm - 158.1
Width (T) inch - 6.2244
Width (C) mm - 120
Width (C) inch - 4.7244
Dynamic Radial Rating (C1) N - 2730000
Dynamic Radial Rating (C1) lbf - 613000
Factor (e) - 0.38
Factor (Y1) - 1.78
Factor (Y2) - 2.65
Dynamic Radial Rating (90 million revolutions) (C90) N - 406000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 91400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 263000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 59200
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 707000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 159000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.54
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Backing Shoulder Diameter (db) mm - 783
Backing Shoulder Diameter (db) inch - 30.83
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 858
Cup Frontface Backing Diameter (Da) inch - 33.78
Weight (kg) - 146.64
Weight (lbs) - 323.31
Inner Spacer - LL483449XA
Outer Spacer - LL483418EA
Inner Part Number - LL483449
Outer Part Number - LL483418
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting
