Description
Brand - RBC HEIM
Item Number - LHSS2 RBC HEIM
Category - Spherical Bearing (Precision Series)

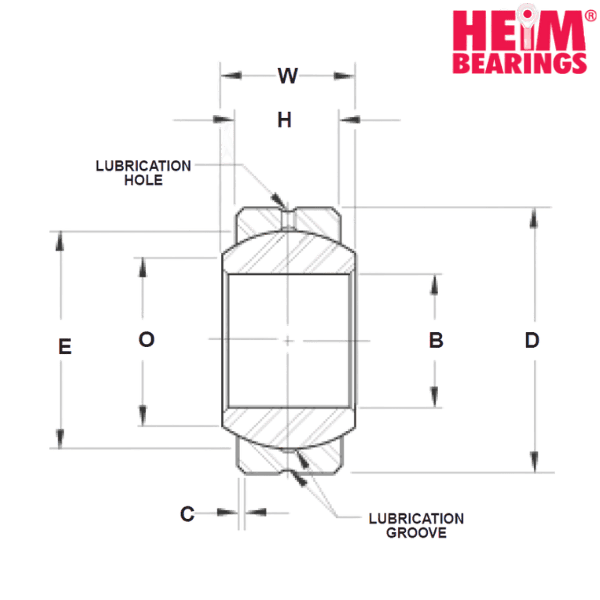

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.165 (+.0000 to - .0005) inch
Outside Diameter (D) - 0.4687 (+.0000 to - .0005) inch
Ball Width (W) - 0.25 (+.000 to - .005) inch
Housing Width (H) - 0.187 (+.005 to - .005) inch
Chamfer Dimension (C) - 0.02 (+.015 to - .000) inch
Ball Diameter (E) - 0.343 inch
Ball Flat Diameter (O) - 0.235 inch
Maximum Static Radial Load - 2900 lbf
Approximate Weight - 0.01 lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.0045 kg
Other salient points to be noted :
• Outer Member = 300 Series stainless steel.
• Ball = 440C Stainless steel, heat treated.

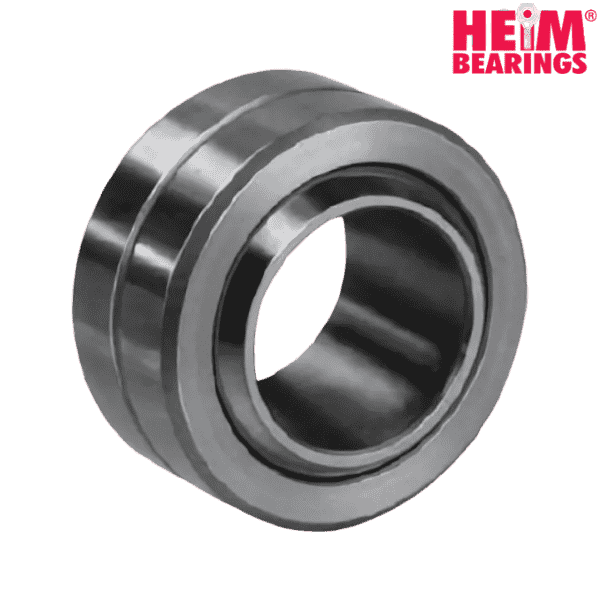

♦ ♦ Images are for representation purposes only
