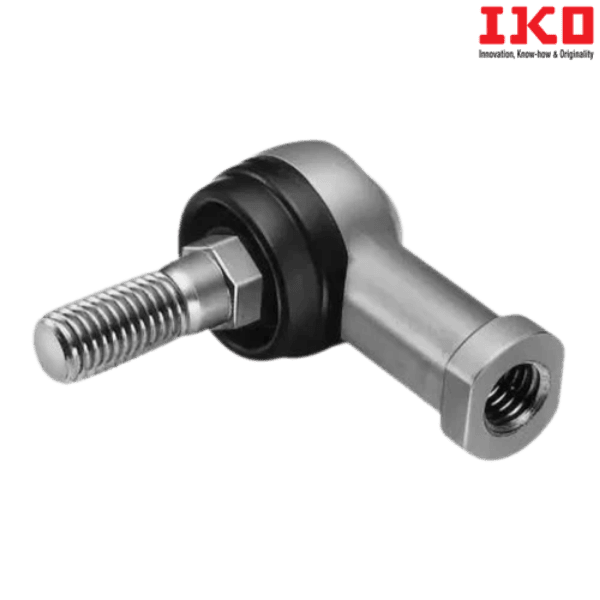

LHSA 10M IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - LHSA 10M IKO
Also Known As - LHSA10M
Category - L-Balls
Thread (S) - M10×1.5

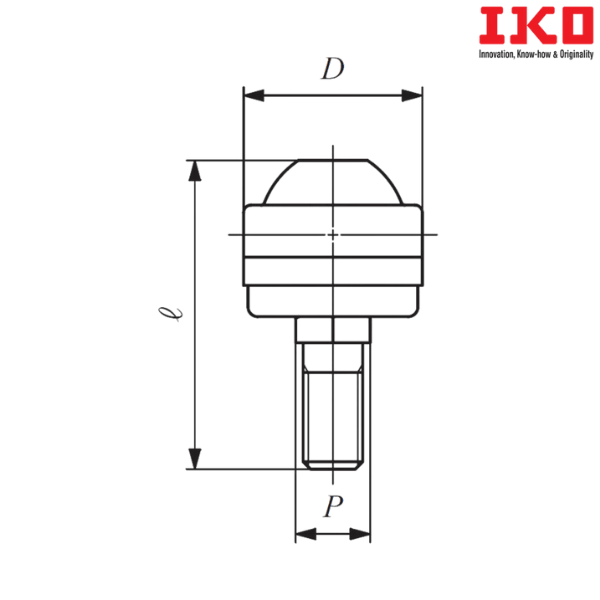

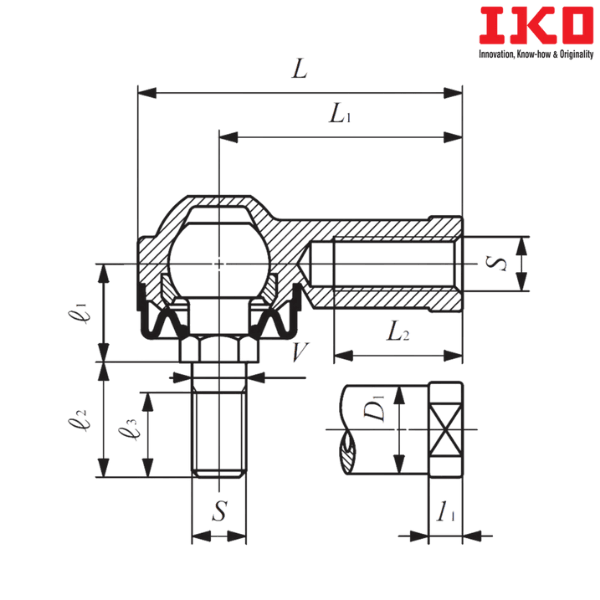

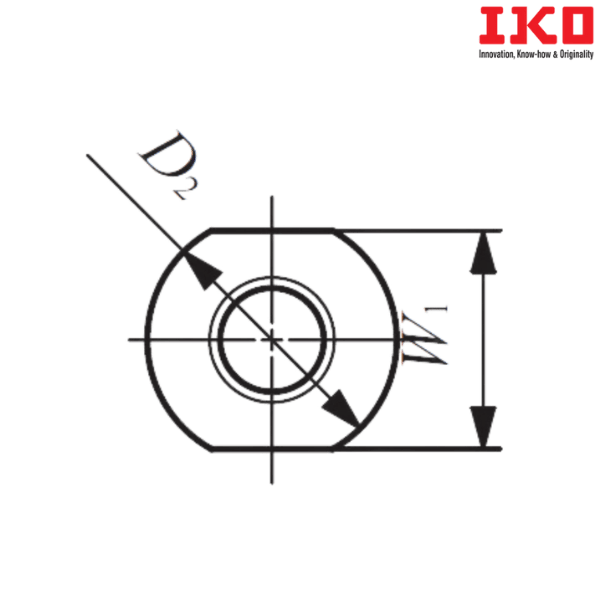

Boundary dimension (V) mm - 10
Boundary dimension (D) mm - 28
Boundary dimension (L) mm - 57
Boundary dimension (L1) mm - 43
Boundary dimension (L2) mm - 23
Boundary dimension (l1) mm - 6.5
Boundary dimension (W1) mm - 17
Boundary dimension (W2) mm - 17
Boundary dimension (D1) mm - 15
Boundary dimension (D2) mm - 19
Boundary dimension (ℓ) mm - 49
Boundary dimension (P) mm - 12
Boundary dimension (ℓ1) mm - 16
Boundary dimension (ℓ2) mm - 21
Boundary dimension (ℓ3) mm - 17
Ball Diameter (mm) - 19.05
Static Load Capacity (Cs) N - 7 400
Weight (kg) - 0.106

** Images are for representation purposes only
