LHS 8 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO

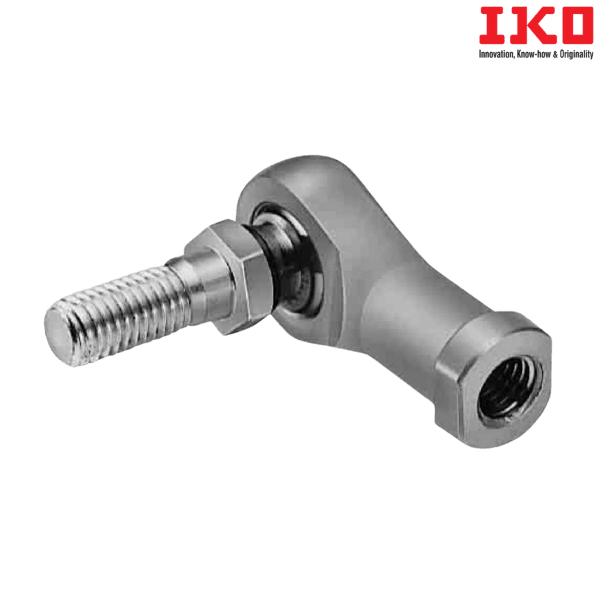

Item Number - LHS 8 IKO
Also Known As - LHS8
Category - L-Balls
Thread (S) - M 8×1.25

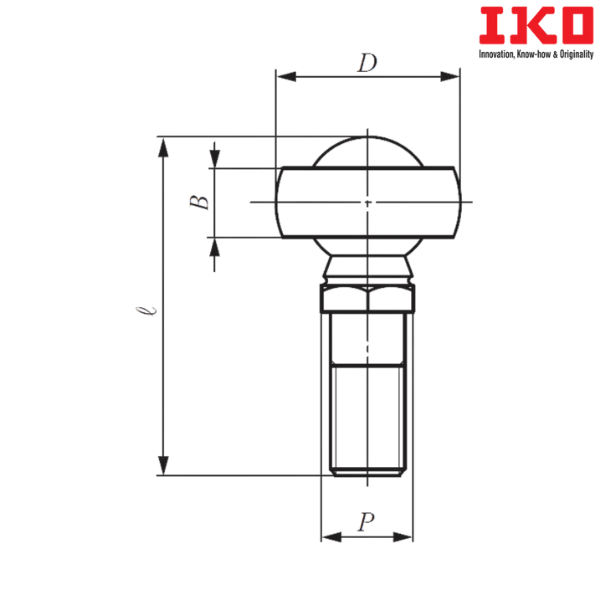

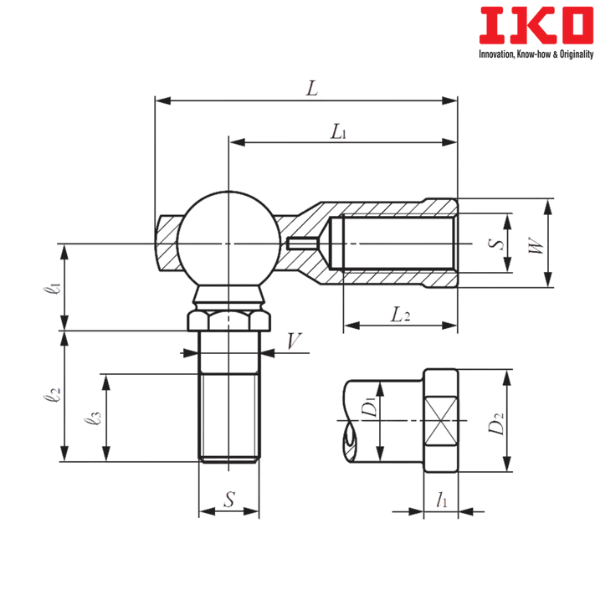

Boundary dimension (V) mm - 8
Boundary dimension (D) mm - 24
Boundary dimension (L) mm - 9
Boundary dimension (L1) mm - 48
Boundary dimension (L2) mm - 36
Boundary dimension (l1) mm - 19
Boundary dimension (W1) mm - 5
Boundary dimension (W2) mm - 14
Boundary dimension (D1) mm - 12.5
Boundary dimension (D2) mm - 16
Boundary dimension (ℓ) mm - 44
Boundary dimension (P) mm - 11
Boundary dimension (ℓ1) mm - 14.5
Boundary dimension (ℓ2) mm - 21.5
Boundary dimension (ℓ3) mm - 15
Ball Diameter (mm) - 15.875
Static Load Capacity (Cs) N - 4 900
Weight (kg) - 0.06

** Images are for representation purposes only
