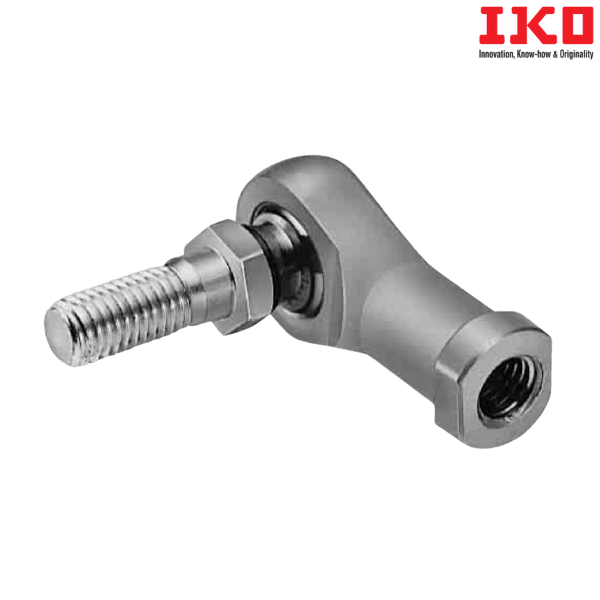

LHS 6 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - LHS 6 IKO
Also Known As - LHS6
Category - L-Balls

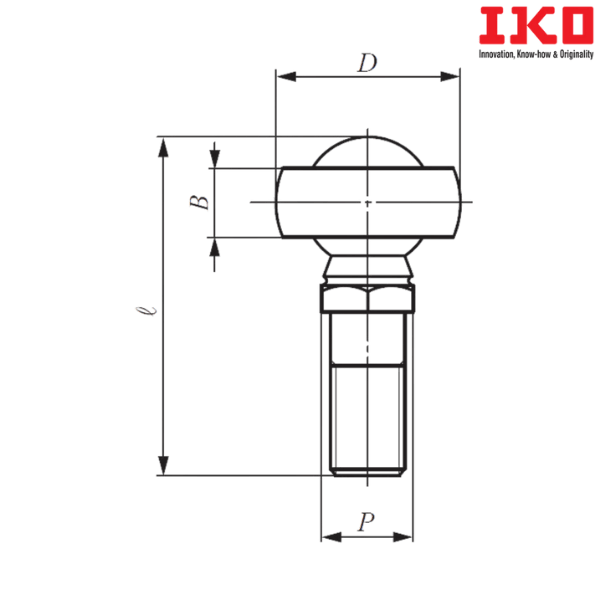

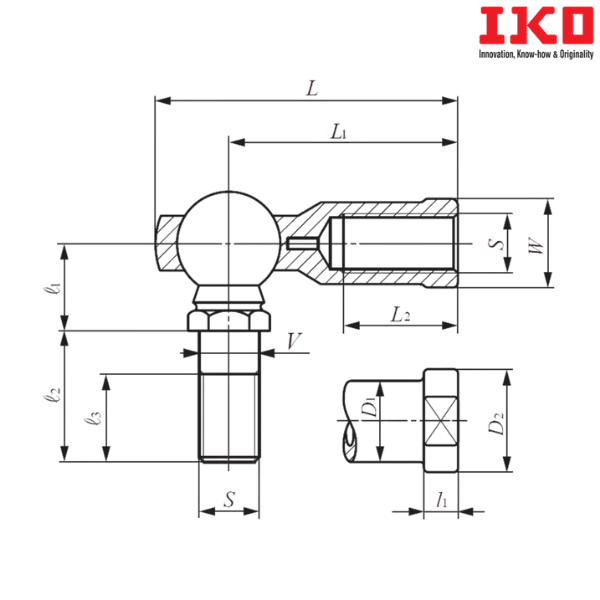

Thread (S) - M 6×1
Boundary dimension (V) mm - 6
Boundary dimension (D) mm - 19.5
Boundary dimension (L) mm - 6.75
Boundary dimension (L1) mm - 39.7
Boundary dimension (L2) mm - 30
Boundary dimension (l1) mm - 16
Boundary dimension (W1) mm - 5
Boundary dimension (W2) mm - 11
Boundary dimension (D1) mm - 10
Boundary dimension (D2) mm - 13
Boundary dimension (ℓ) mm - 36.5
Boundary dimension (P) mm - 10
Boundary dimension (ℓ1) mm - 11.5
Boundary dimension (ℓ2) mm - 18.5
Boundary dimension (ℓ3) mm - 14
Ball Diameter (mm) - 12.7
Static Load Capacity (Cs) N - 3 290
Weight (kg) - 0.032

** Images are for representation purposes only
