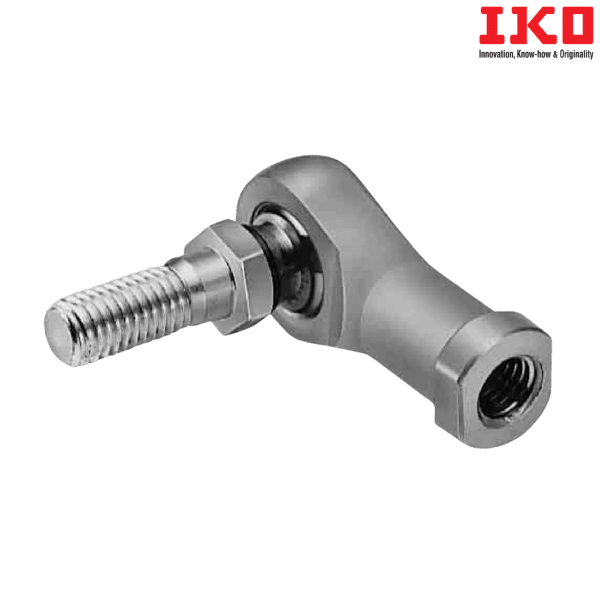

LHS 5 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - LHS 5 IKO
Also Known As - LHS5
Category - L-Balls

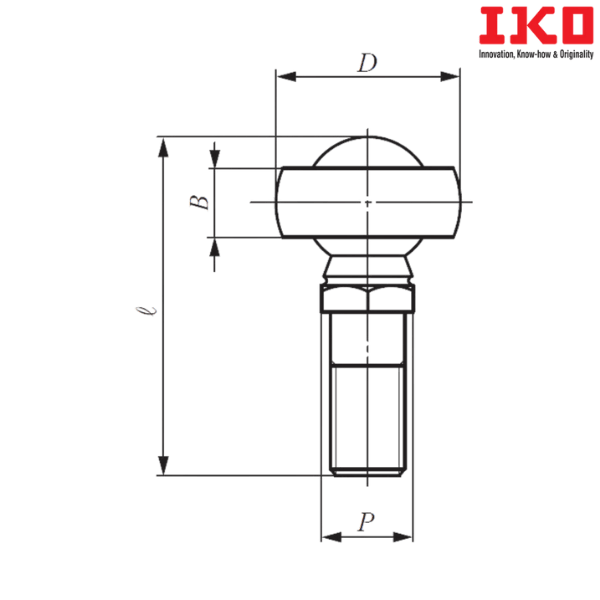

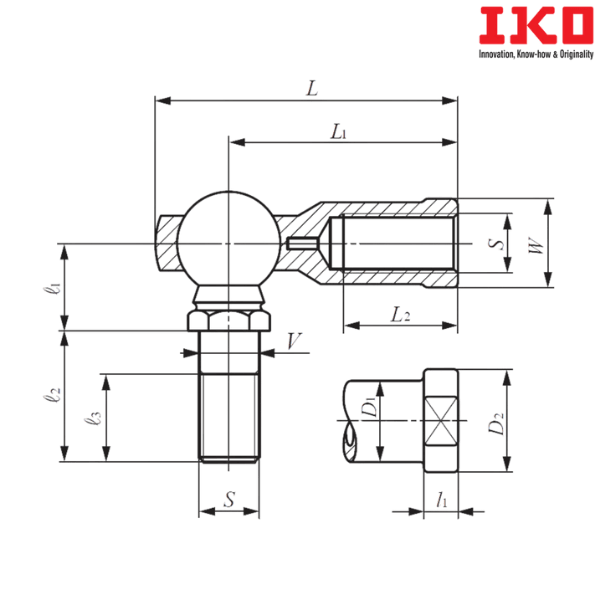

Thread (S) - M 5×0.8
Boundary dimension (V) mm - 5
Boundary dimension (D) mm - 17
Boundary dimension (L) mm - 6
Boundary dimension (L1) mm - 35.5
Boundary dimension (L2) mm - 27
Boundary dimension (l1) mm - 16
Boundary dimension (W1) mm - 4
Boundary dimension (W2) mm - 9
Boundary dimension (D1) mm - 9
Boundary dimension (D2) mm - 11
Boundary dimension (ℓ) mm - 30.5
Boundary dimension (P) mm - 8
Boundary dimension (ℓ1) mm - 10
Boundary dimension (ℓ2) mm - 15
Boundary dimension (ℓ3) mm - 11
Ball Diameter (mm) - 11.112
Static Load Capacity (Cs) N - 2 080
Weight (kg) - 0.022

** Images are for representation purposes only
