LHA14 RBC HEIM

Brand - RBC HEIM
Item Number - LHA14 RBC HEIM
Category - Spherical Bearing (Precision Series)

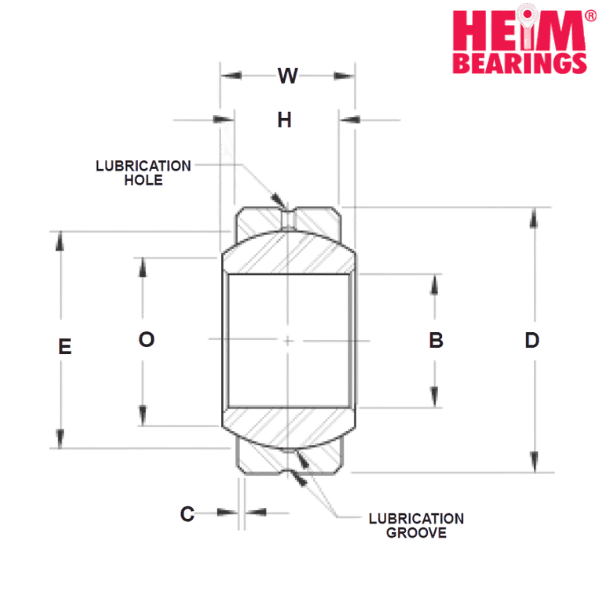

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.875 (+.0000 to - .0005) inch
Outside Diameter (D) - 1.5625 (+.0000 to - .0005) inch
Ball Width (W) - 0.875 (+.000 to - .005) inch
Housing Width (H) - 0.703 (+.005 to - .005) inch
Chamfer Dimension (C) - 0.044 (+.015 to - .000) inch
Ball Diameter (E) - 1.312 inch
Ball Flat Diameter (O) - 0.98 inch
Maximum Static Radial Load - 103000 lbf
Approximate Weight - 0.27 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.1224 kg

Other salient points to be noted :
• Outer Member = LHA: 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation.
• Ball = 52100 Alloy steel, heat treated, chrome plated.

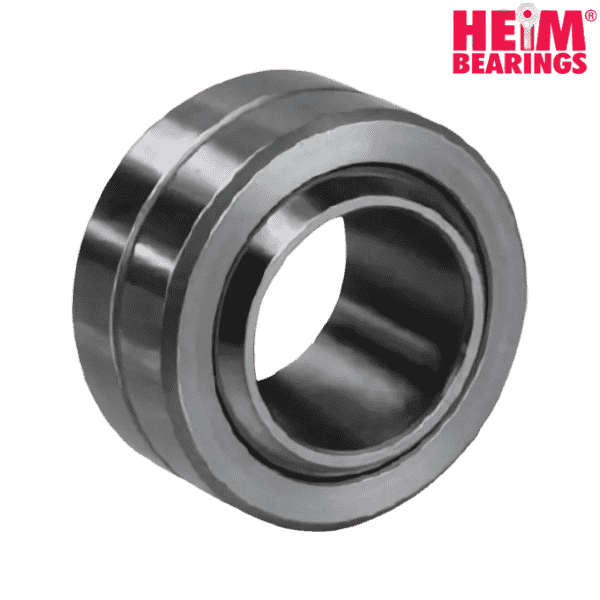

♦ ♦ Images are for representation purposes only
