Description
Brand - SCHEERER
Item Number - LBC-4 1/2 SCHEERER

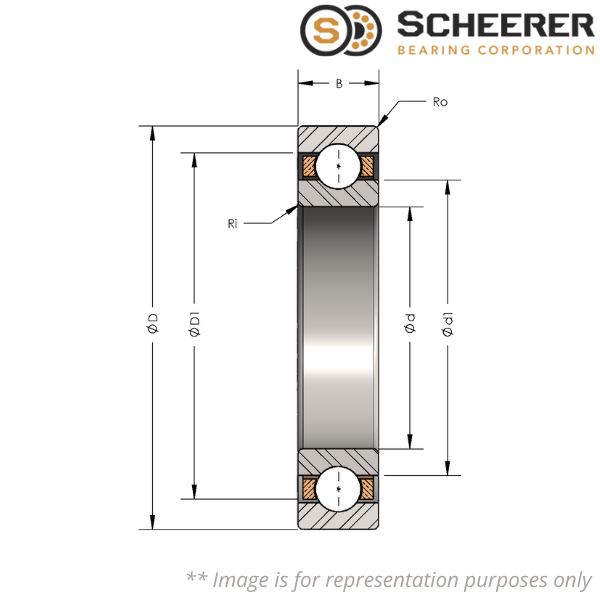

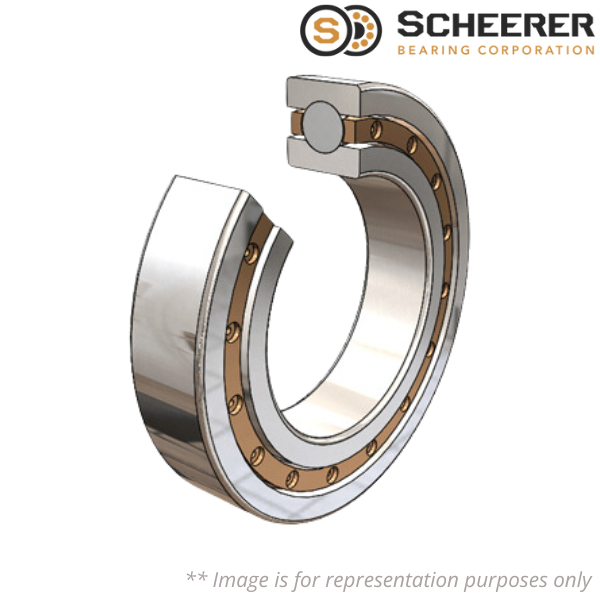

Category - Deep Groove Radial Ball Bearing Single Row, Inch Series
Configuration - Conrad Style Radial
Inner Diameter (d) mm - 114.3
Outer Diameter (D) mm - 203.2
Width (b) mm - 33.338
Weight (M) kg - 5.08
Dynamic Capacity (C) kg - Available on Request
Static Capacity (Co) kg - Available on Request
