L882449/L882410CD TIMKEN

Brand - TIMKEN
Item Number - L882449/L882410CD TIMKEN
Also Known As - L882449 - L882410CD
Category - Double Row Tapered Roller Bearing (TDO Type)

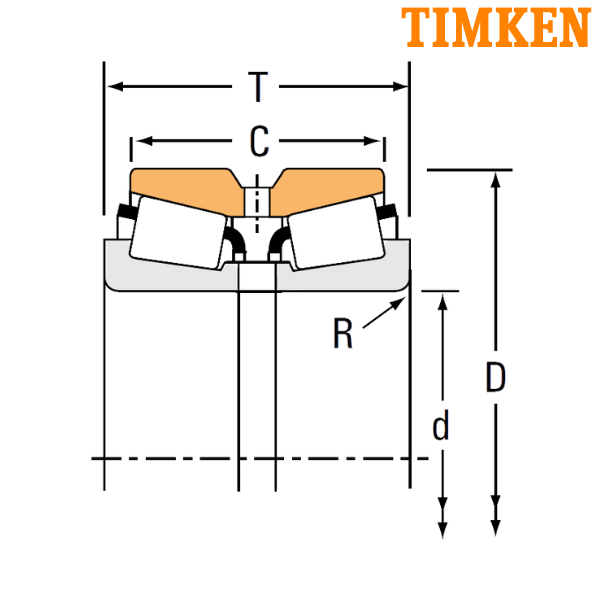

Bore Diameter (d) mm - 710
Bore Diameter (d) inch - 27.9528
Outer Diameter (D) mm - 899.925
Outer Diameter (D) inch - 35.4301
Bearing Width across Cones (T) mm - 230
Bearing Width across Cones (T) inch - 9.0551
Double Outer Ring Width (C) mm - 166.002
Double Outer Ring Width (C) inch - 6.5355
Dynamic Load Rating (C1) N - 4990000
Dynamic Load Rating (C1) lbf - 1120000
Factor (e) - 0.52
Factor (Y1) - 1.29
Factor (Y2) - 1.92
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 743000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 167000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 667000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 150000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 1290000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 291000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.11
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 750
Cone Backface Backing Diameter (db) inch - 29.53
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 873
Cup Frontface Backing Diameter (Da) inch - 34.37
PIn (Ka) mm - 25.4
PIn (Ka) inch - 1
PIn (Kb) mm - 18.26
PIn (Kb) inch - 0.72
Geometry Factor (G1) - 13015.8
Geometry Factor (G2) - 1127.2
Geometry Factor (Cg) - 0.3473
Bearing Weight (kg) - 331.66
Bearing Weight (lbs) - 731.22
Inner Part Number - L882449
Outer Part Number - L882410CD

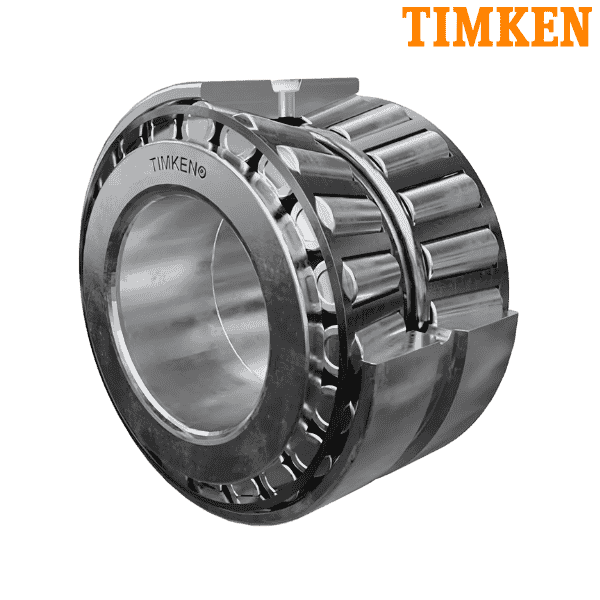

** Images are for representation purposes only
