L68149/L68111 (K154145R / L68111EC) TIMKEN

Brand - TIMKEN
Item Number - L68149/L68111 (K154145R / L68111EC) TIMKEN
Also Known As - L68149 - L68111 (K154145R - L68111EC)

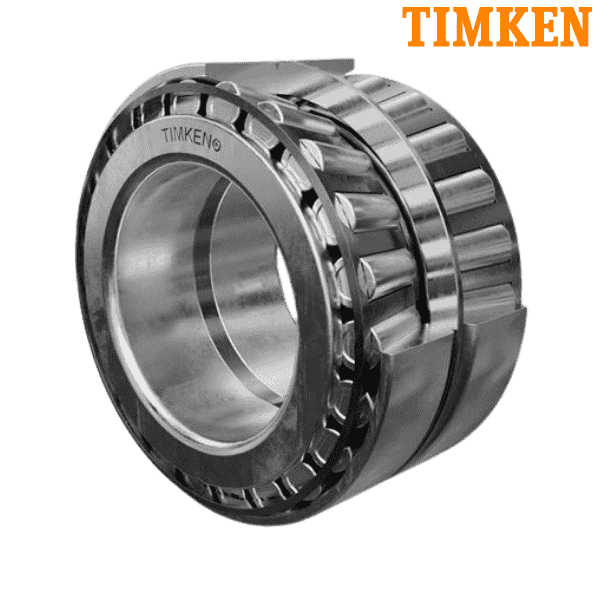

Category - Double Row Tapered Roller Bearing (2TS-IM Type)

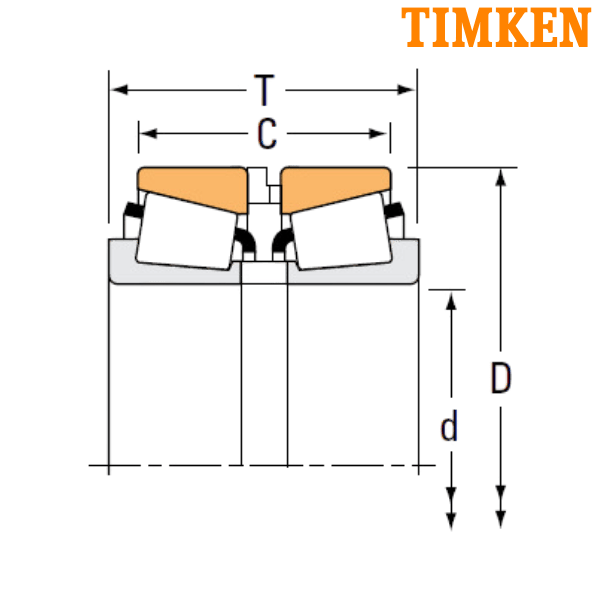

Bore Diameter (d) mm - 34.987
Bore Diameter (d) inch - 1.3775
Outer Diameter (D) mm - 59.975
Outer Diameter (D) inch - 2.3612
Width (T) mm - 35.712
Width (T) inch - 1.406
Width (C) mm - 27.838
Width (C) inch - 1.096
Dynamic Radial Rating (C1) N - 79200
Dynamic Radial Rating (C1) lbf - 17800
Factor (e) - 0.42
Factor (Y1) - 1.62
Factor (Y2) - 2.42
Dynamic Radial Rating (90 million revolutions) (C90) N - 11800
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 2650
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 8400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1890
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 20500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 4620
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.4
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14

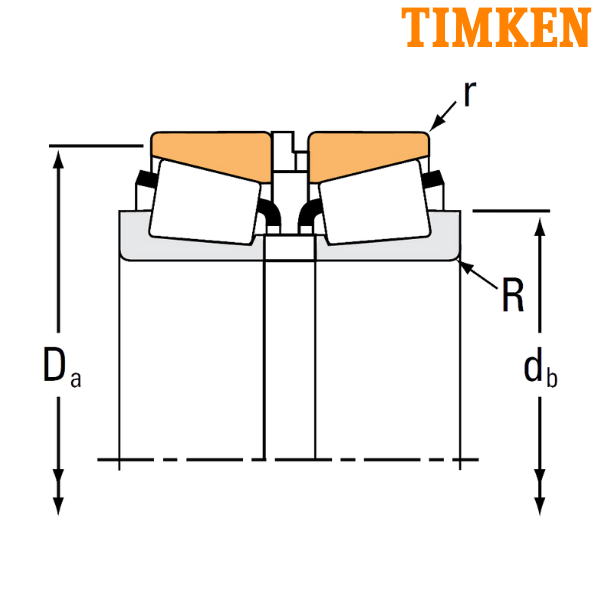

Backing Shoulder Diameter (db) mm - 45.5
Backing Shoulder Diameter (db) inch - 1.79
Maximum Housing Fillet Radius (r) mm - 0.4
Maximum Housing Fillet Radius (r) inch - 0.02
Cup Frontface Backing Diameter (Da) mm - 56
Cup Frontface Backing Diameter (Da) inch - 2.2
Weight (kg) - 0.38
Weight (lbs) - 0.83
Inner Spacer - K154145R
Outer Spacer - L68111EC
Inner Part Number - L68149
Outer Part Number - L68111
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

** Images are for representation purposes only
