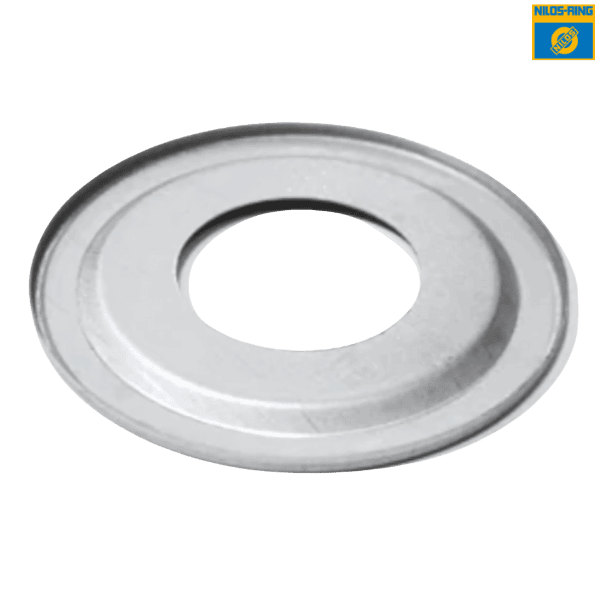

L44649/L44610 AV NILOS-RING

Brand - NILOS-RING
Item Number - L44649/L44610 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

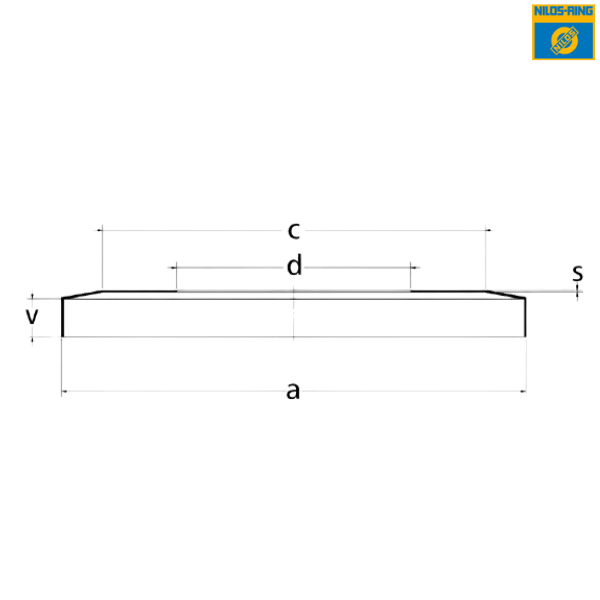

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 48.3 mm
Dimension (c) - 40 mm
Inner Diameter (d) - 26.99 mm
Thickness (s) - 0.3 mm
Width (v) - 4.1 mm

Principal Dimensions & Load Ratings (Imperial) :
Outer Diameter (a) - 1.9016 inch
Dimension (c) - 1.5748 inch
Inner Diameter (d) - 1.0626 inch
Thickness (s) - 0.0118 inch
Width (v) - 0.1614 inch

♦ ♦ Images are for representation purposes only
