L44643/L44610 (L44600LA) TIMKEN

Brand - TIMKEN
Item Number - L44643/L44610 (L44600LA) TIMKEN
Also Known As - L44643 - L44610 (L44600LA)
Category - Single Row Tapered Roller Bearing (TSL Type)
Bore Diameter (d) mm - 25.4
Bore Diameter (d) inch - 1
Outer Diameter (D) mm - 50.292
Outer Diameter (D) inch - 1.98
Bearing Width (T) mm - 14.935
Bearing Width (T) inch - 0.588
Total Width (T1) mm - 16.13
Total Width (T1) inch - 0.635
Dynamic Load Rating (C1) N - 35600
Dynamic Load Rating (C1) lbf - 8010
Factor (e) - 0.37
Factor (Y) - 1.6
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 9230
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 2080
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 5910
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1330
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.56
Basic Static Radial Load Rating (C0) N - 32900
Basic Static Radial Load Rating (C0) lbf - 7400
Inner Ring Width (B) mm - 14.732
Inner Ring Width (B) inch - 0.58
Effective Center Location (a) mm - -3.3
Effective Center Location (a) inch - -0.13
Maximum Shaft Fillet Radius (R) mm - 1.3
Maximum Shaft Fillet Radius (R) inch - 0.05

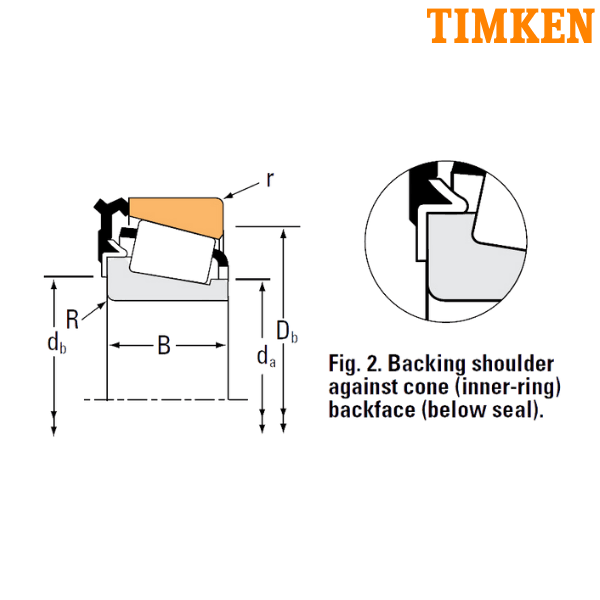

Cone Frontface Backing Diameter (da) mm - 30
Cone Frontface Backing Diameter (da) inch - 1.18
Cone Backface Backing Diameter (db) mm - 32
Cone Backface Backing Diameter (db) inch - 1.26
Maximum Housing Fillet Radius (r) mm - 1.3
Maximum Housing Fillet Radius (r) inch - 0.05
Cup Backface Backing Diameter (Db) mm - 44.5
Cup Backface Backing Diameter (Db) inch - 1.75
Geometry Factor (G1) - 8.9
Geometry Factor (G2) - 8.9
Geometry Factor (Cg) - 0.0526
Weight (kg) - 0.13
Weight (lbs) - 0.28
Inner Part Number - L44643
Outer Part Number - L44610
Seal Part Number - L44600LA
TSL - Single-Row Bearing with a DUO-FACE PLUS Seal Pressed on to the Large Rib of the Inner Ring

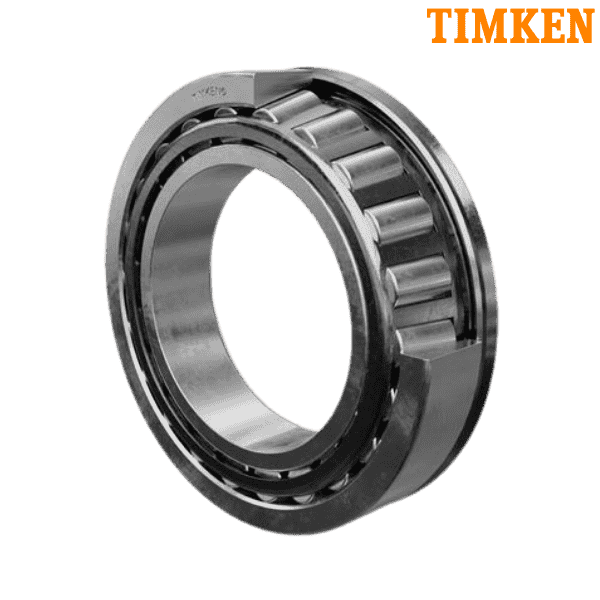

** Images are for representation purposes only
