Description
Brand - TIMKEN
Item Number - L44643/L44610 (K106790R/K106789R) TIMKEN
Also Known As - L44643 - L44610 (K106790R - K106789R)
Category - Double Row Tapered Roller Bearing (2S Type)
Bore Diameter (d) mm - 25.4
Bore Diameter (d) inch - 1
Outer Diameter (D) mm - 50.292
Outer Diameter (D) inch - 1.98
Width (T) mm - 31.623
Width (T) inch - 1.245
Width (C) mm - 24.511
Width (C) inch - 0.965
Dynamic Radial Rating (C1) N - 62000
Dynamic Radial Rating (C1) lbf - 13900
Factor (e) - 0.37
Factor (Y1) - 1.8
Factor (Y2) - 2.69
Dynamic Radial Rating (90 million revolutions) (C90) N - 9230
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 2080
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 5910
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1330
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 16100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 3610
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.56

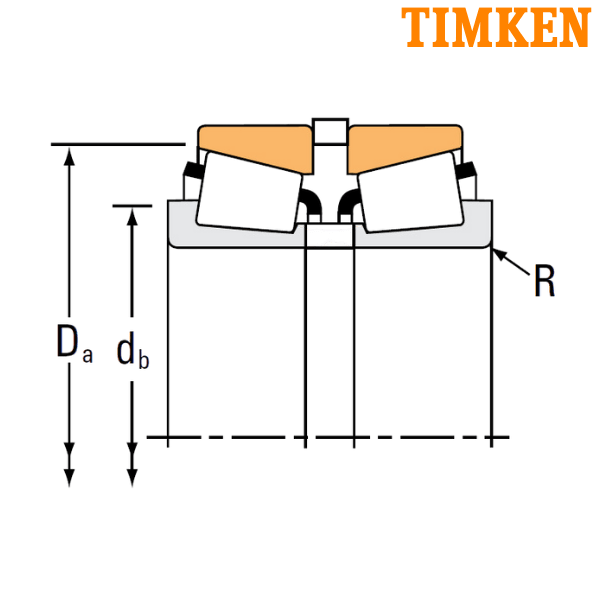

Maximum Shaft Fillet Radius (R) mm - 1.3
Maximum Shaft Fillet Radius (R) inch - 0.05
Backing Shoulder Diameter (db) mm - 32
Backing Shoulder Diameter (db) inch - 1.26
Maximum Housing Fillet Radius (r) mm - 47
Maximum Housing Fillet Radius (r) inch - 1.85

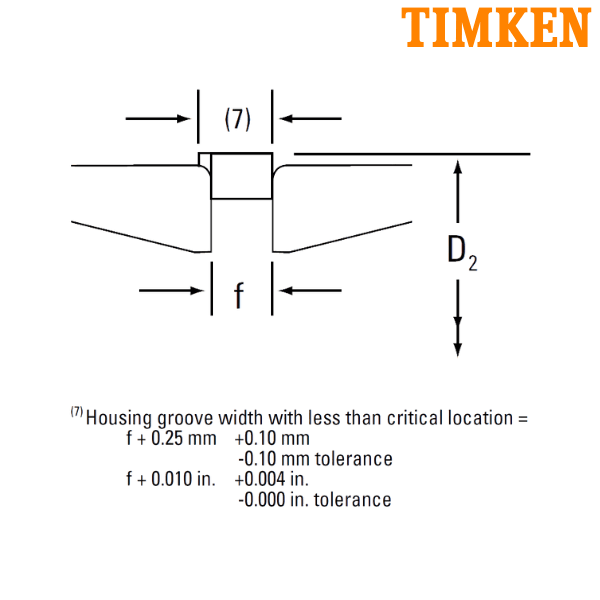

Snap Ring Groove (D2) mm - 52.78
Snap Ring Groove (D2) inch - 2.08
Snap Ring Groove (f) mm - 3.18
Snap Ring Groove (f) inch - 0.13
Weight (kg) - 0.28
Weight (lbs) - 0.6
Inner Spacer - K106790R
Outer Spacer - K106789R
Inner Part Number - L44643
Outer Part Number - L44610
2S - Two Single-Row Bearings with Snap Ring Spacer
** Images are for representation purposes only
