Description
Brand - INA

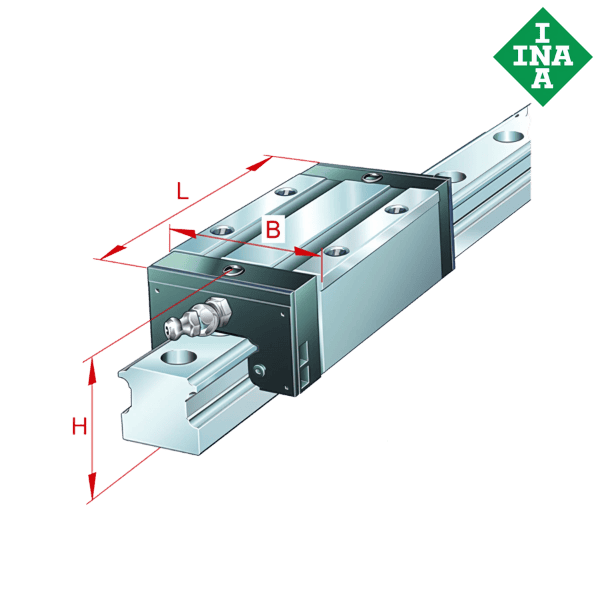

Item Number - KUSE20-L-W1-G3-V1/229 INA
Category - Ball Monorail Guidance System
Also known as - KUSE20-L-W1-V1-G3/229
Inner (d) MM - 20
Outer (D) MM - 63
Width (B) MM - 229
Weight (kg) - 1.1267
Seal - No Seal
W1 - One Carriage On Guideway
G3 - Precision Class 3
** Images are for representation purposes only
