Description
Brand - INA
Item Number - KUME7B-W1-G2-V1/90 INA

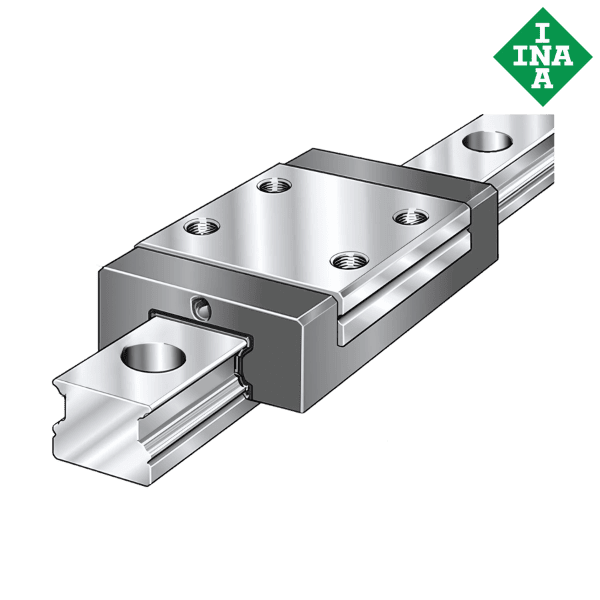

Category - Ball Monorail Guidance System
Inner (d) MM - 7
Width (B) MM - 90
Inner (d) Inch - 0.2756
Width (B) Inch - 3.5433
Weight (kg) - 0.03229
Seal - No Seal
W1 - One Carriage On Guideway
G2 - Accuracy Class 2
** Images are for representation purposes only
