Description
Brand - INA
Item Number - KUME12-C-W4-G2-V1-1000 INA

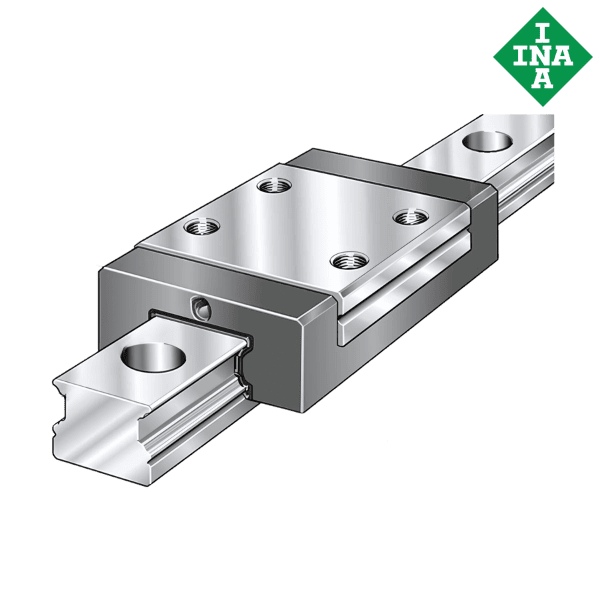

Category - Ball Monorail Guidance System
Also known as - KUME12-C-W4-V1-G2-1000
Inner (d) MM - 12
Outer (D) MM - 27
Width (B) MM - 1000
Weight (kg) - 0.72
Seal - No Seal
W4 - Four Carriages On Guideway
G2 - Precision Class 2
** Images are for representation purposes only
