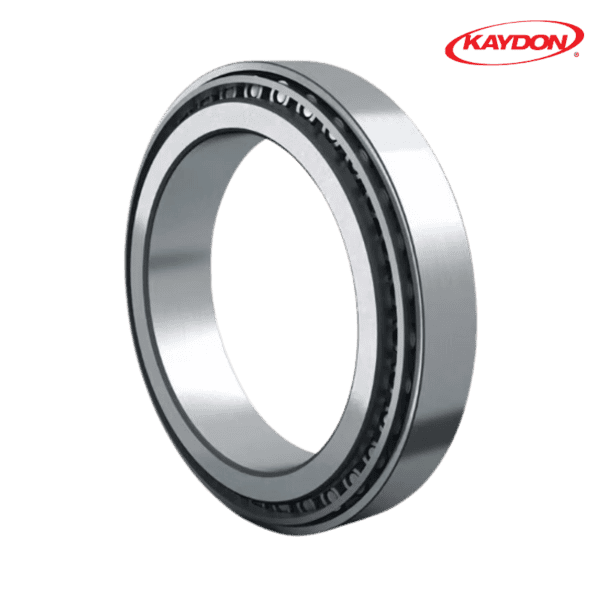

KT-180 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KT-180 KAYDON
Also Known As - KDN.KT-180
Category - KT Series Thin Section Tapered Roller Bearings

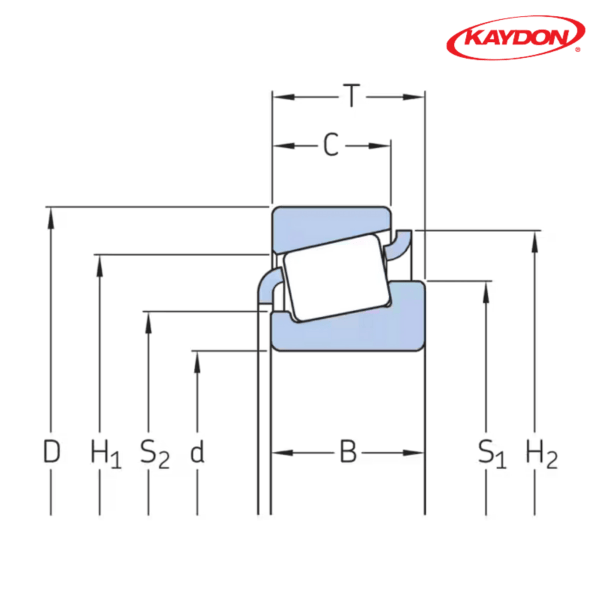

Outer Diameter (D) inch - 19.625
Cone Width (T) inch - 0.812
Width (B) inch - 0.812
Cup Width (C) inch - 0.687
Radial Dynamic Load Rating (CK) lbf - 7400
Basic Dynamic Axial Load Rating (Ca) lbf - 4330
Weight (kg) - 3.7194544
Abutment Dimensions Shaft Shoulders (S1) inch - 18.438
Abutment Dimensions Shaft Shoulders (S2) inch - 18.375
Abutment Dimensions Housing Shoulders (H1) inch - 19.188
Abutment Dimensions Housing Shoulders (H2) inch - 19.3
Maximun Radius of Fillet Shaft (inch) - 0.06
Maximun Radius of Fillet Housing (inch) - 0.06

** Images are for representation purposes only
