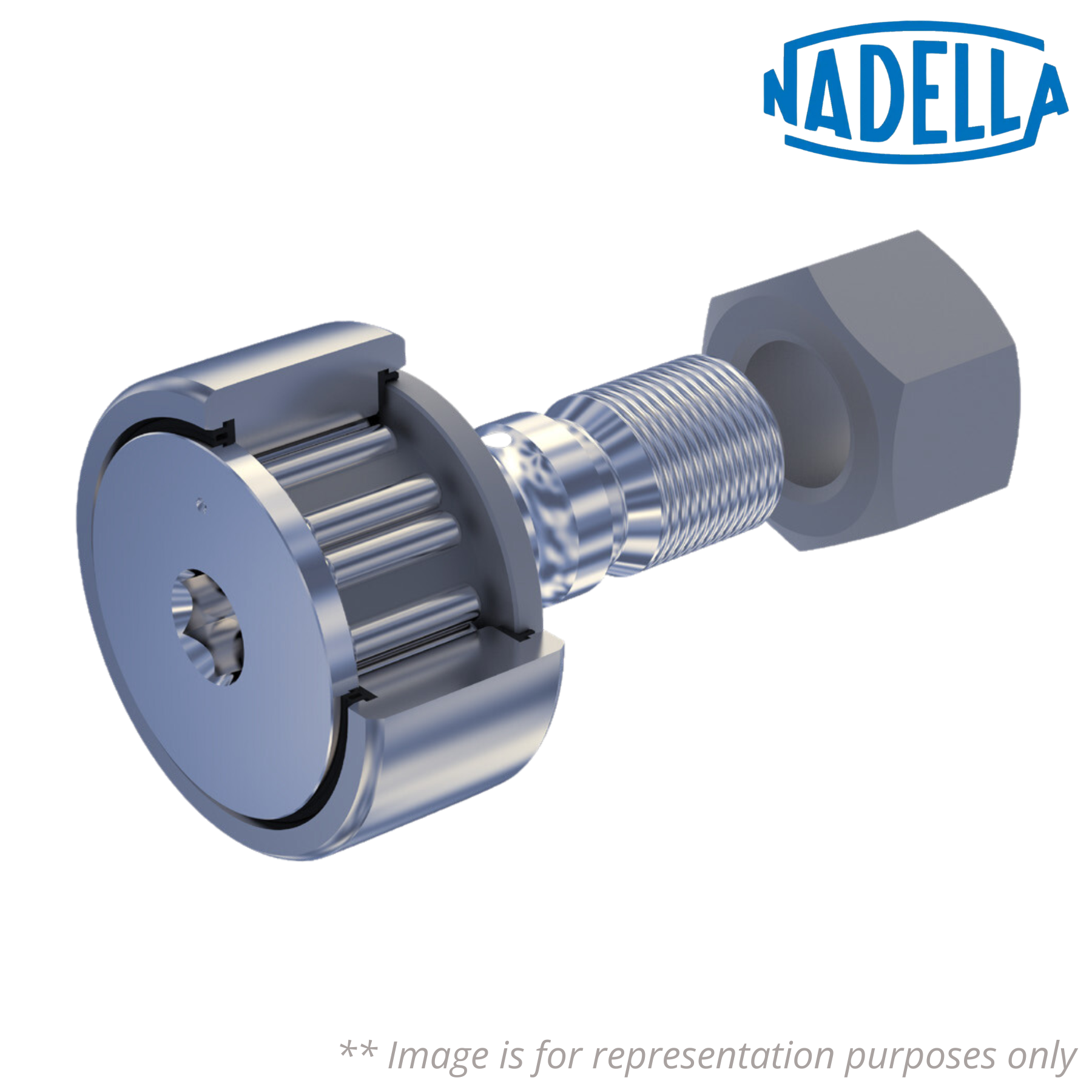

KRE 22 NADELLA

Brand - NADELLA
Item Number - KRE 22 NADELLA
Also Known As - KRE22
Category - Cam Followers with Eccentric Bush

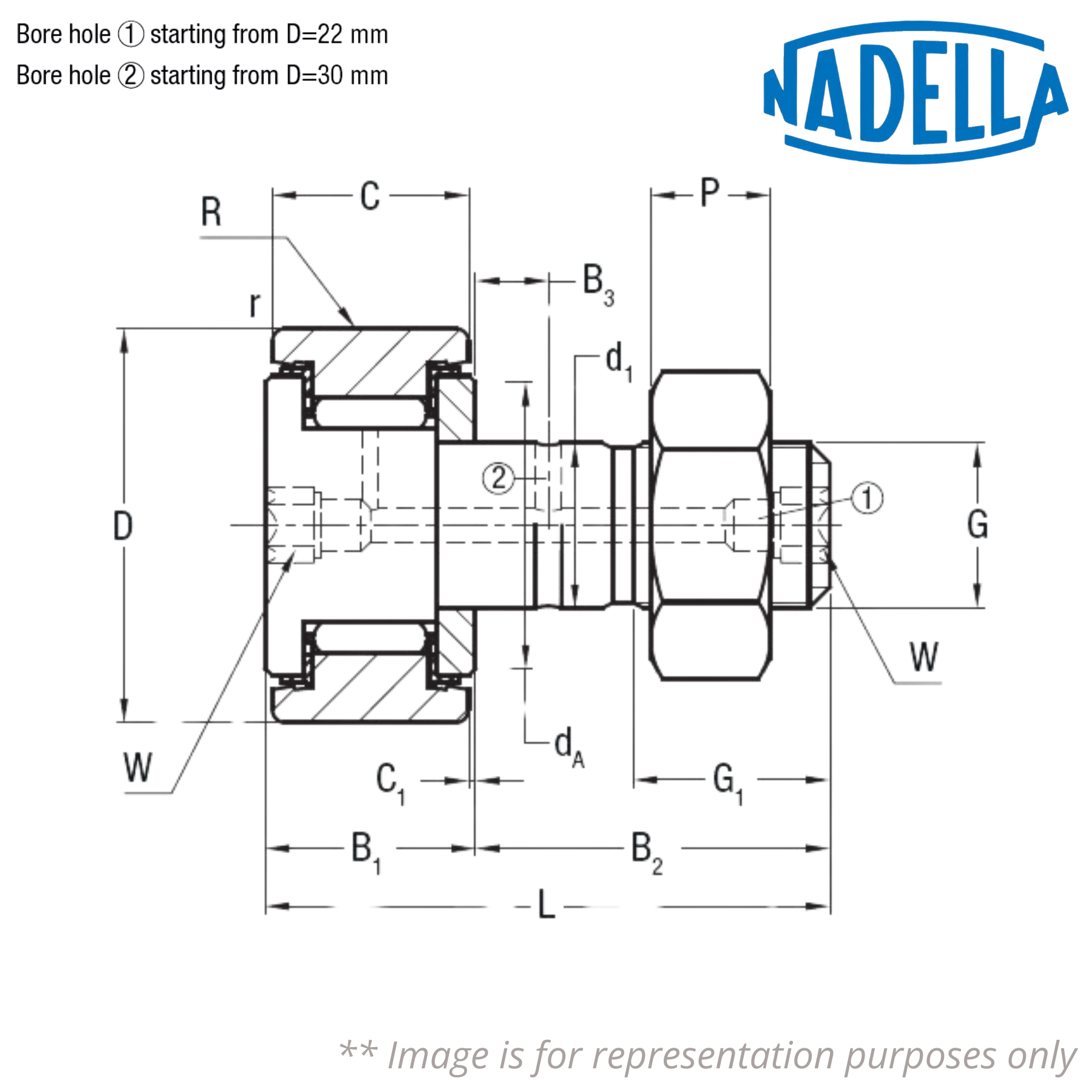

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 22 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 10 mm
Dimension (L) - 36 mm
Dimension (B1) - 13.2 mm
Dimension (B2) - 23 mm
Threading (G) - M10x1
Dimension (G1) - 12 mm
Dimension (C) - 12 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 17.5 mm
Dimension (r) - 0.3 mm
Convex Radius (R) * - 500 mm
Dimension (W) - 5 mm
Dimension (P) - 5 mm

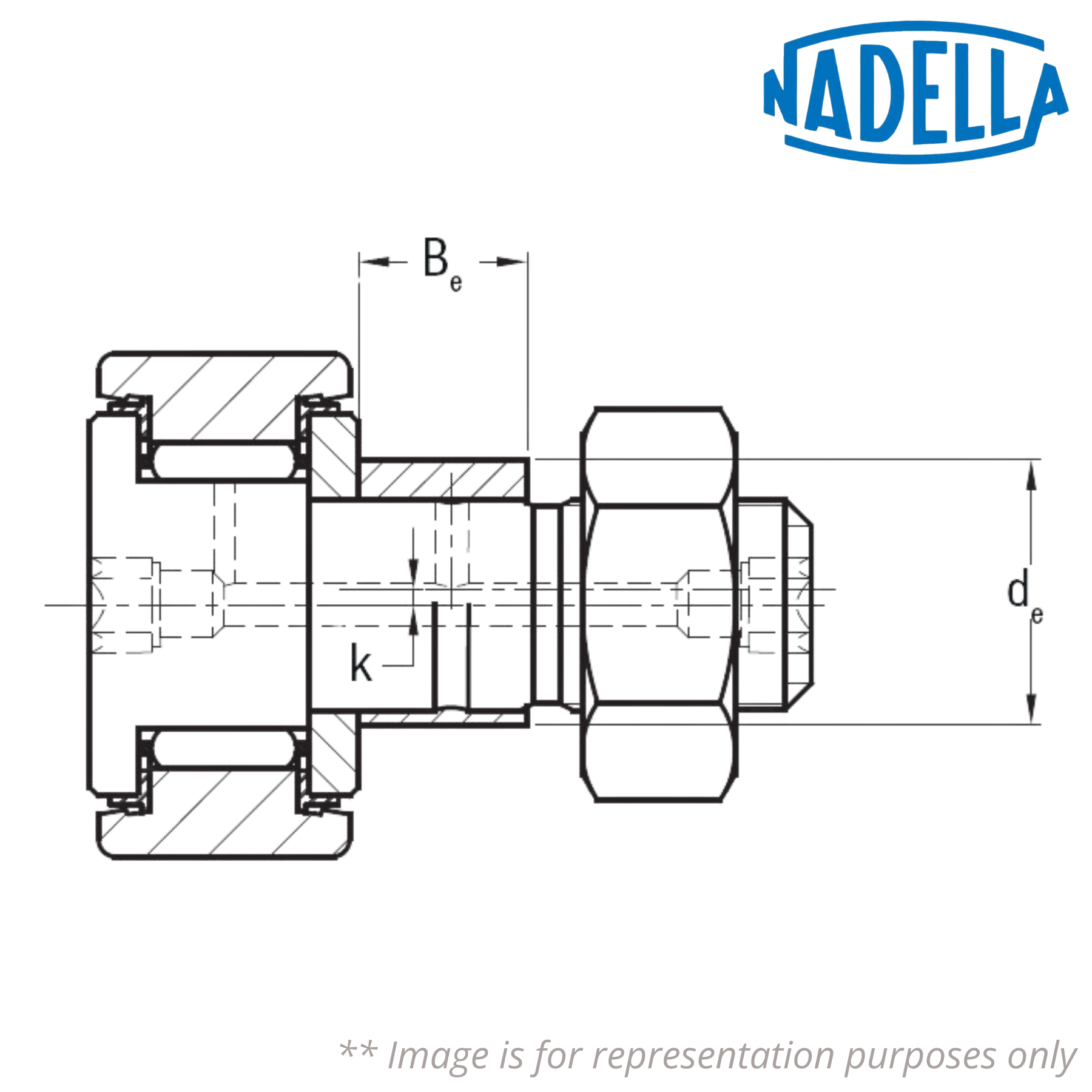

Dimension of Eccentric Bearing (de) ** - 13 mm
Dimension of Eccentric Bearing (k) - 0.5 mm
Dimension of Eccentric Bearing (Be) - 10 mm
Load Coefficients (Cw) - 4550 N
Fatigue Load Coefficients (Cuw) - 730 N
Static Load Coefficients (For) *** - 5300 N
Speed Limit with Grease - 8000 RPM
Weight of Nut and Washers - 0.047 kg
Clamping Torque - 15 Nm

Description of Prefix:
KRE - Cam follower with stud with no seals, with eccentric collar

Other salient points to be noted:
* Convex radius in the standard version
** Hole diameter for assembly of the eccentric cam follower without stud: de H7
*** For load for cam follower without stud and no eccentric collar. The KRE eccentric cam followers with stud are supplied with an eccentric bearing already fitted and one clamping nut

♦♦ Images are for representation purposes only
