KRE 16 NADELLA

Brand - NADELLA
Item Number - KRE 16 NADELLA
Also Known As - KRE16
Category - Cam Followers with Eccentric Bush

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 16 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 6 mm
Dimension (L) - 28 mm
Dimension (B1) - 12.2 mm
Dimension (B2) - 16 mm
Threading (G) - M6x1
Dimension (G1) - 8 mm
Dimension (C) - 11 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 12.5 mm
Dimension (r) - 0.15 mm
Convex Radius (R) * - 500 mm
Dimension (P) - 3.2 mm

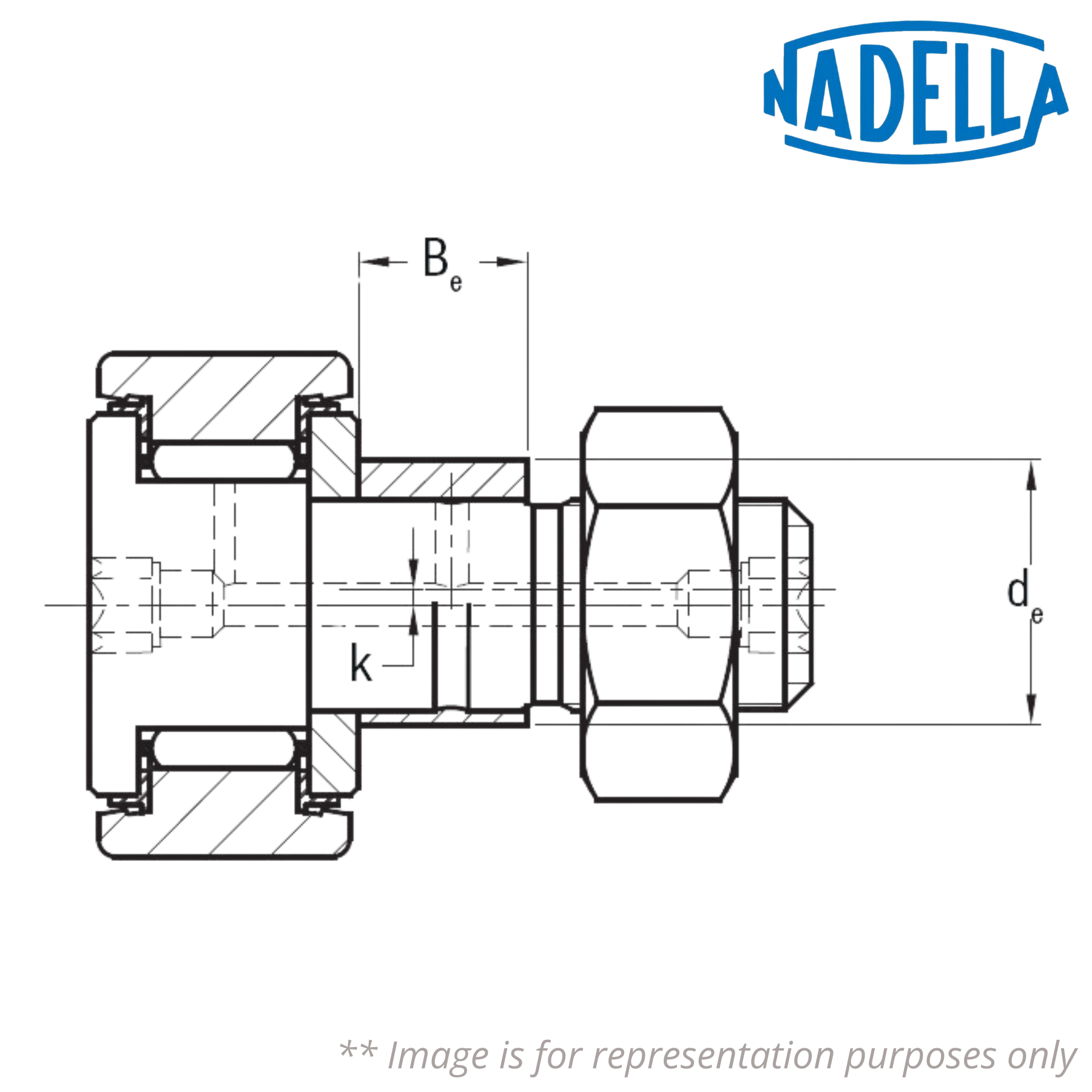

Dimension of Eccentric Bearing (de) ** - 9 mm
Dimension of Eccentric Bearing (k) - 0.5 mm
Dimension of Eccentric Bearing (Be) - 7 mm
Load Coefficients (Cw) - 3150 N
Fatigue Load Coefficients (Cuw) - 450 N
Static Load Coefficients (For) *** - 3350 N
Speed Limit with Grease - 14000 RPM
Weight of Nut and Washers - 0.02 kg
Clamping Torque - 3 Nm

Description of Prefix:
KRE - Cam follower with stud with no seals, with eccentric collar

Other salient points to be noted:
* Convex radius in the standard version
** Hole diameter for assembly of the eccentric cam follower without stud: de H7
*** For load for cam follower without stud and no eccentric collar. The KRE eccentric cam followers with stud are supplied with an eccentric bearing already fitted and one clamping nut

♦♦ Images are for representation purposes only
