Description
Brand - INA
Item Number - KN1232-PP INA
Also known as - KN12-B-PP LBCD12A-2LS LMES12UU R0670-212-40 SPM12WW TK12UU
Category - Linear Ball Bearing
Inner (d) MM - 12
Outer (D) MM - 22
Width (B) MM - 32
Inner (d) Inch - 0.4724
Outer (D) Inch - 0.8661
Width (B) Inch - 1.2598
Weight (kg) - 0.015
Seal - 2L - LS-seal at Both Sides

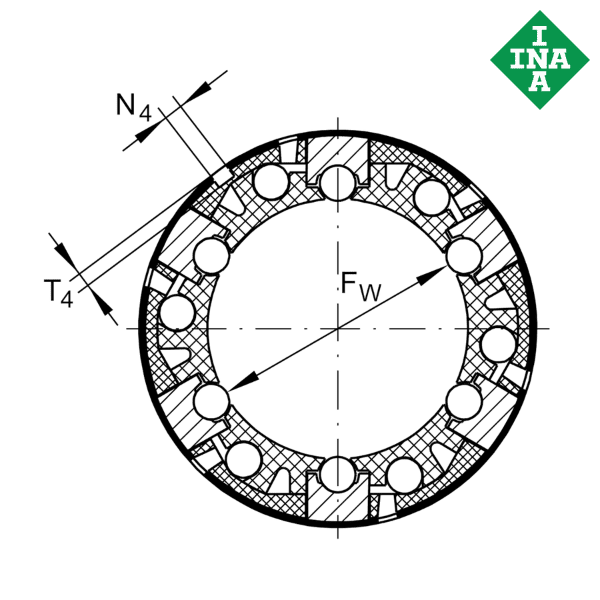

** Images are for representation purposes only
