Description
Brand - FAG
Item Number - KLM78349-LM78310-A FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.2
Inner Diameter (d) mm - 34.987
Inner Diameter (d) inch - 1.3774
Outer Diameter (D) mm - 61.973
Outer Diameter (D) inch - 2.4399
Inner Ring Width (B) mm - 17
Inner Ring Width (B) inch - 0.6693
Outer Ring Width (C) mm - 13.6
Outer Ring Width (C) inch - 0.5354
Total Width (T) mm - 16.7
Total Width (T) inch - 0.6575
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 14
Distance Between The Apexes of The Pressure Cones (a) inch - 0.551
Guidance Rib Diameter of Inner Ring (d1) mm - 49.7
Guidance Rib Diameter of Inner Ring (d1) inch - 1.957

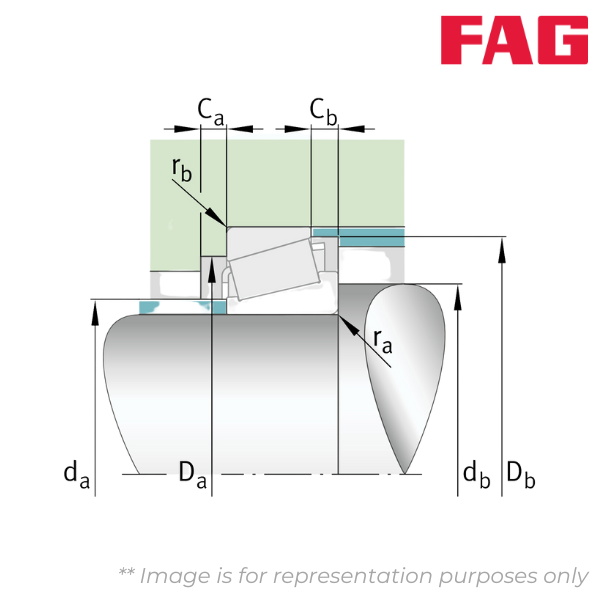

Maximum Diameter of Shaft Shoulder (da) mm - 40
Maximum Diameter of Shaft Shoulder (da) inch - 1.575
Minimum diameter of shaft shoulder (db) mm - 46
Minimum diameter of shaft shoulder (db) inch - 1.811
Minimum Diameter of Housing Shoulder (Da) mm - 54
Minimum Diameter of Housing Shoulder (Da) inch - 2.126
Minimum Diameter of Housing Shoulder (Db) mm - 59
Minimum Diameter of Housing Shoulder (Db) inch - 2.323
Minimum Axial Space (Ca) mm - 3
Minimum Axial Space (Ca) inch - 0.118
Minimum Axial Space (Cb) mm - 3
Minimum Axial Space (Cb) inch - 0.118
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 38
Basic Static Radial Load Rating (C0r) kN - 49
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.44
Dynamic Axial Load Factor (Y) - 1.35
Static Axial Load Factor (Y0) - 0.74
Fatigue Load Limit, Radial (Cur) kN - 5.7
Limiting Speed (nG) min–1 - 11800
