Brand - FAG
Item Number - KLM613449-LM613410 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.798
Inner Diameter (d) mm - 69.85
Inner Diameter (d) inch - 2.75
Outer Diameter (D) mm - 112.712
Outer Diameter (D) inch - 4.4375
Inner Ring Width (B) mm - 21.996
Inner Ring Width (B) inch - 0.866
Outer Ring Width (C) mm - 15.875
Outer Ring Width (C) inch - 0.625
Total Width (T) mm - 22.225
Total Width (T) inch - 0.875
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 0.8
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.03
Distance Between The Apexes of The Pressure Cones (a) mm - 22
Distance Between The Apexes of The Pressure Cones (a) inch - 0.866

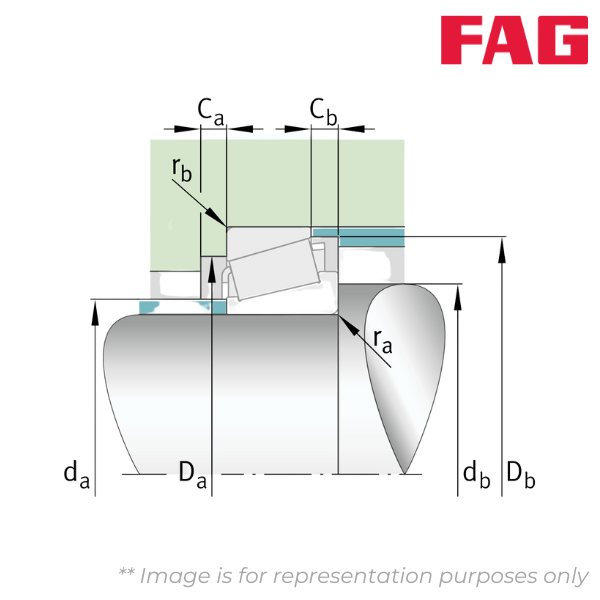

Guidance Rib Diameter of Inner Ring (d1) mm - 91
Guidance Rib Diameter of Inner Ring (d1) inch - 3.583
Maximum Diameter of Shaft Shoulder (da) mm - 76
Maximum Diameter of Shaft Shoulder (da) inch - 2.992
Minimum diameter of shaft shoulder (db) mm - 78
Minimum diameter of shaft shoulder (db) inch - 3.071
Minimum Diameter of Housing Shoulder (Da) mm - 104
Minimum Diameter of Housing Shoulder (Da) inch - 4.094
Minimum Diameter of Housing Shoulder (Db) mm - 107
Minimum Diameter of Housing Shoulder (Db) inch - 4.213
Minimum Axial Space (Ca) mm - 3
Minimum Axial Space (Ca) inch - 0.118
Minimum Axial Space (Cb) mm - 6
Minimum Axial Space (Cb) inch - 0.236
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 0.8
Maximum Fillet Radius of Housing (rb) inch - 0.03
Basic Dynamic Radial Load Rating (Cr) kN - 85
Basic Static Radial Load Rating (C0r) kN - 115
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.42
Dynamic Axial Load Factor (Y) - 1.44
Static Axial Load Factor (Y0) - 0.79
Fatigue Load Limit, Radial (Cur) kN - 13.7
Limiting Speed (nG) min–1 - 6400
