Description
Brand - FAG
Item Number - KLM241148-LM241111 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 7.21
Inner Diameter (d) mm - 203.987
Inner Diameter (d) inch - 8.031
Outer Diameter (D) mm - 276.225
Outer Diameter (D) inch - 10.875
Inner Ring Width (B) mm - 46.038
Inner Ring Width (B) inch - 1.8125
Outer Ring Width (C) mm - 34.132
Outer Ring Width (C) inch - 1.3438
Total Width (T) mm - 42.862
Total Width (T) inch - 1.6875
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 45
Distance Between The Apexes of The Pressure Cones (a) inch - 1.772
Guidance Rib Diameter of Inner Ring (d1) mm - 240.6
Guidance Rib Diameter of Inner Ring (d1) inch - 9.472

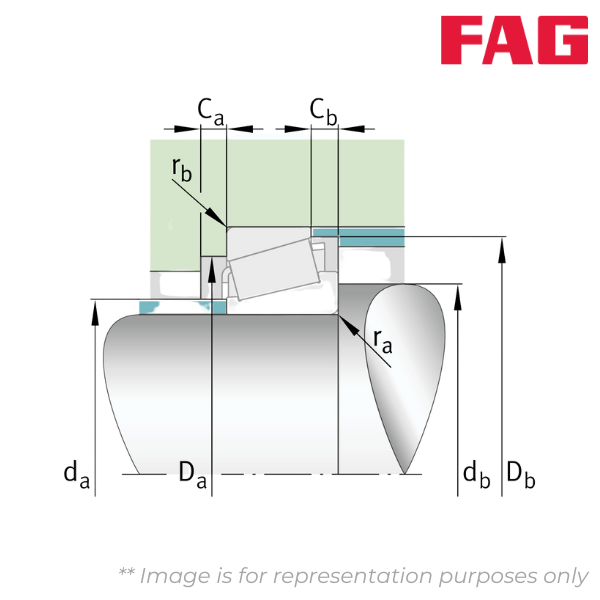

Maximum Diameter of Shaft Shoulder (da) mm - 214
Maximum Diameter of Shaft Shoulder (da) inch - 8.425
Minimum diameter of shaft shoulder (db) mm - 219
Minimum diameter of shaft shoulder (db) inch - 8.622
Minimum Diameter of Housing Shoulder (Da) mm - 260
Minimum Diameter of Housing Shoulder (Da) inch - 10.236
Minimum Diameter of Housing Shoulder (Db) mm - 267
Minimum Diameter of Housing Shoulder (Db) inch - 10.512
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 8
Minimum Axial Space (Cb) inch - 0.315
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 380
Basic Static Radial Load Rating (C0r) kN - 720
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.32
Dynamic Axial Load Factor (Y) - 1.88
Static Axial Load Factor (Y0) - 1.04
Fatigue Load Limit, Radial (Cur) kN - 82
Limiting Speed (nG) min–1 - 2420
