Brand - FAG
Item Number - KLL428349-LL428310-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1.33
Inner Diameter (d) mm - 139.7
Inner Diameter (d) inch - 5.5
Outer Diameter (D) mm - 180.975
Outer Diameter (D) inch - 7.125
Inner Ring Width (B) mm - 20.638
Inner Ring Width (B) inch - 0.8125
Outer Ring Width (C) mm - 16.67
Outer Ring Width (C) inch - 0.6563
Total Width (T) mm - 21.433
Total Width (T) inch - 0.8438
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 30
Distance Between The Apexes of The Pressure Cones (a) inch - 1.181

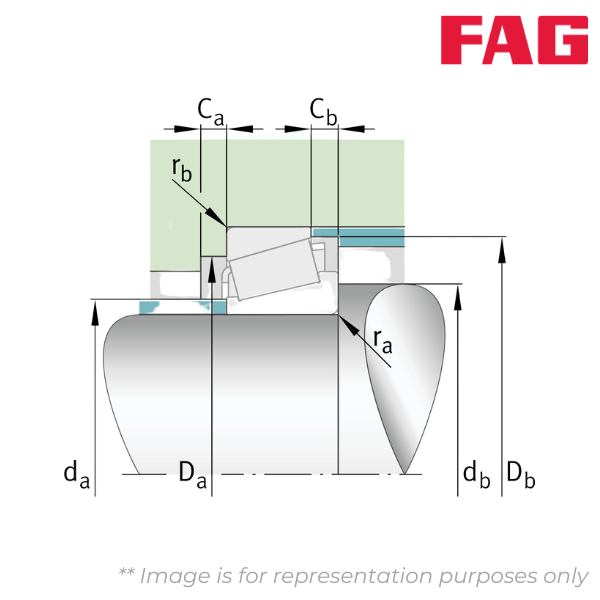

Guidance Rib Diameter of Inner Ring (d1) mm - 157
Guidance Rib Diameter of Inner Ring (d1) inch - 6.181
Maximum Diameter of Shaft Shoulder (da) mm - 146
Maximum Diameter of Shaft Shoulder (da) inch - 5.748
Minimum diameter of shaft shoulder (db) mm - 148
Minimum diameter of shaft shoulder (db) inch - 5.827
Minimum Diameter of Housing Shoulder (Da) mm - 172
Minimum Diameter of Housing Shoulder (Da) inch - 6.772
Minimum Diameter of Housing Shoulder (Db) mm - 175
Minimum Diameter of Housing Shoulder (Db) inch - 6.89
Minimum Axial Space (Ca) mm - 3.5
Minimum Axial Space (Ca) inch - 0.138
Minimum Axial Space (Cb) mm - 6
Minimum Axial Space (Cb) inch - 0.236
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 133
Basic Static Radial Load Rating (C0r) kN - 184
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.37
Dynamic Axial Load Factor (Y) - 1.64
Static Axial Load Factor (Y0) - 0.9
Fatigue Load Limit, Radial (Cur) kN - 23.7
Limiting Speed (nG) min–1 - 4350
