Description
Brand - FAG
Item Number - KL435049-L435010-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 2.51
Inner Diameter (d) mm - 171.45
Inner Diameter (d) inch - 6.75
Outer Diameter (D) mm - 222.25
Outer Diameter (D) inch - 8.75
Inner Ring Width (B) mm - 24.608
Inner Ring Width (B) inch - 0.9688
Outer Ring Width (C) mm - 19.05
Outer Ring Width (C) inch - 0.75
Total Width (T) mm - 25.4
Total Width (T) inch - 1
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 36
Distance Between The Apexes of The Pressure Cones (a) inch - 1.417
Guidance Rib Diameter of Inner Ring (d1) mm - 193
Guidance Rib Diameter of Inner Ring (d1) inch - 7.598

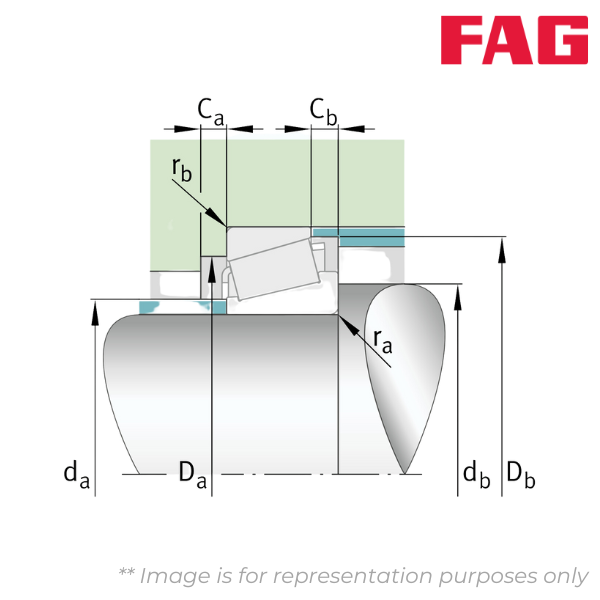

Maximum Diameter of Shaft Shoulder (da) mm - 179
Maximum Diameter of Shaft Shoulder (da) inch - 7.047
Minimum diameter of shaft shoulder (db) mm - 181
Minimum diameter of shaft shoulder (db) inch - 7.126
Minimum Diameter of Housing Shoulder (Da) mm - 211
Minimum Diameter of Housing Shoulder (Da) inch - 8.307
Minimum Diameter of Housing Shoulder (Db) mm - 215
Minimum Diameter of Housing Shoulder (Db) inch - 8.465
Minimum Axial Space (Ca) mm - 3
Minimum Axial Space (Ca) inch - 0.118
Minimum Axial Space (Cb) mm - 6
Minimum Axial Space (Cb) inch - 0.236
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 195
Basic Static Radial Load Rating (C0r) kN - 285
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.38
Dynamic Axial Load Factor (Y) - 1.6
Static Axial Load Factor (Y0) - 0.88
Fatigue Load Limit, Radial (Cur) kN - 35
Limiting Speed (nG) min–1 - 3500
