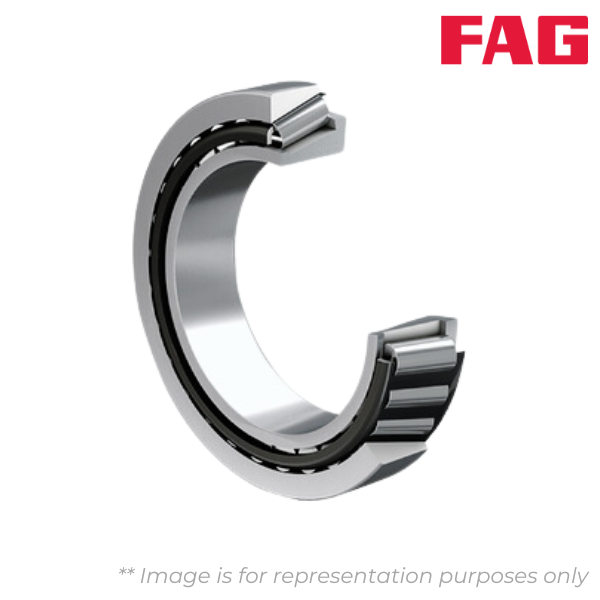

KH414242-H414210-XL FAG

Brand - FAG
Item Number - KH414242-H414210-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 2.77

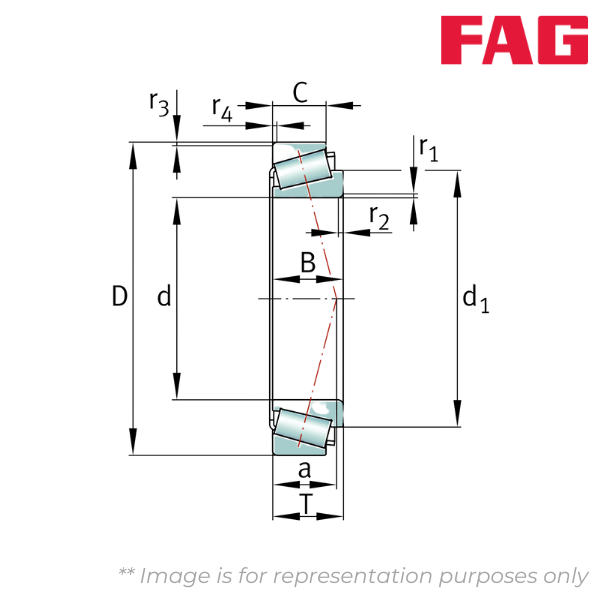

Inner Diameter (d) mm - 66.675
Inner Diameter (d) inch - 2.625
Outer Diameter (D) mm - 136.525
Outer Diameter (D) inch - 5.375
Inner Ring Width (B) mm - 41.275
Inner Ring Width (B) inch - 1.625
Outer Ring Width (C) mm - 31.75
Outer Ring Width (C) inch - 1.25
Total Width (T) mm - 41.275
Total Width (T) inch - 1.625
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 30
Distance Between The Apexes of The Pressure Cones (a) inch - 1.181
Guidance Rib Diameter of Inner Ring (d1) mm - 101.2
Guidance Rib Diameter of Inner Ring (d1) inch - 3.984
Maximum Diameter of Shaft Shoulder (da) mm - 81
Maximum Diameter of Shaft Shoulder (da) inch - 3.189
Minimum diameter of shaft shoulder (db) mm - 85
Minimum diameter of shaft shoulder (db) inch - 3.346
Minimum Diameter of Housing Shoulder (Da) mm - 121
Minimum Diameter of Housing Shoulder (Da) inch - 4.764
Minimum Diameter of Housing Shoulder (Db) mm - 129
Minimum Diameter of Housing Shoulder (Db) inch - 5.079
Minimum Axial Space (Ca) mm - 6
Minimum Axial Space (Ca) inch - 0.236
Minimum Axial Space (Cb) mm - 9
Minimum Axial Space (Cb) inch - 0.354
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 270
Basic Static Radial Load Rating (C0r) kN - 295
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.36
Dynamic Axial Load Factor (Y) - 1.67
Static Axial Load Factor (Y0) - 0.92
Fatigue Load Limit, Radial (Cur) kN - 46.5
Limiting Speed (nG) min–1 - 5700
