Description
Brand - ZEN
Item Number - KH4060 ZEN
Category - Linear Bearings (KH Series)

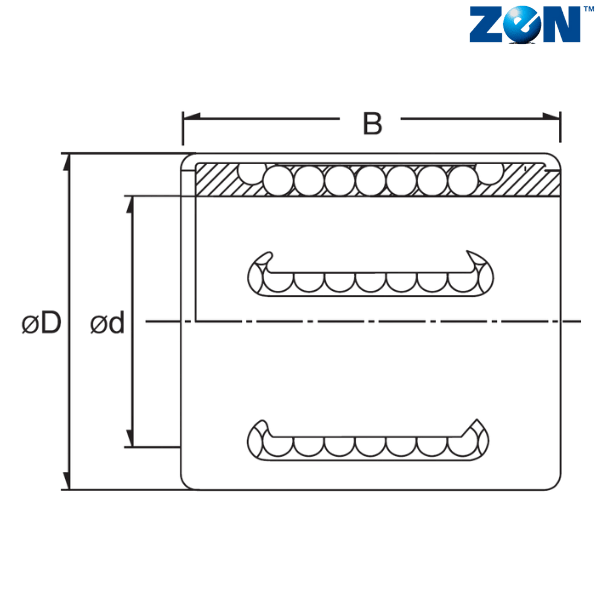

Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 52
Width (B) mm - 60
Dynamic Load Rating (N) - 4400
Static Load Rating (N) - 4450
Weight (kg) - 0.182
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

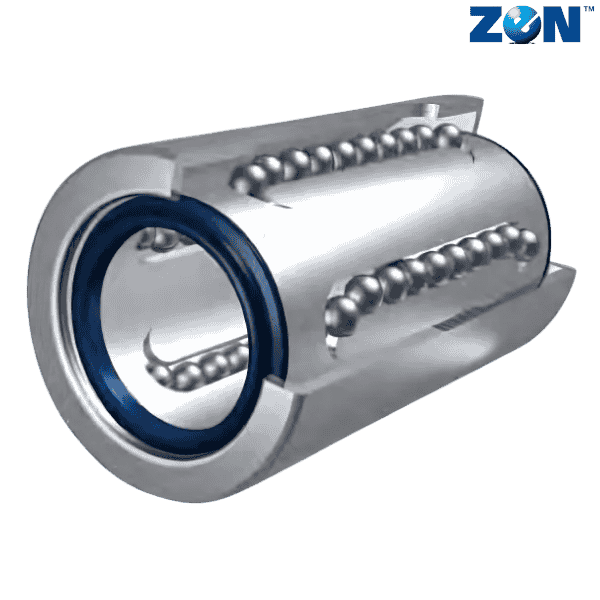

** Images are for representation purposes only
