Description
Brand - ZEN
Item Number - KH2540 ZEN
Category - Linear Bearings (KH Series)

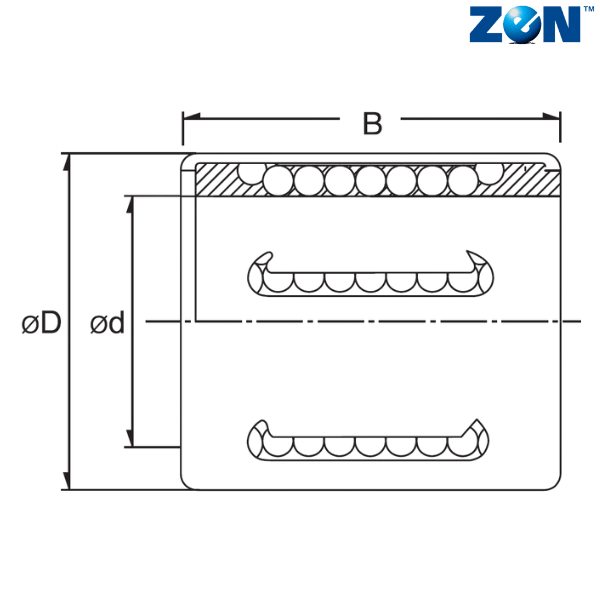

Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 35
Width (B) mm - 40
Dynamic Load Rating (N) - 1990
Static Load Rating (N) - 1670
Weight (kg) - 0.066
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
