Description
Brand - ZEN
Item Number - KH2030-PP ZEN

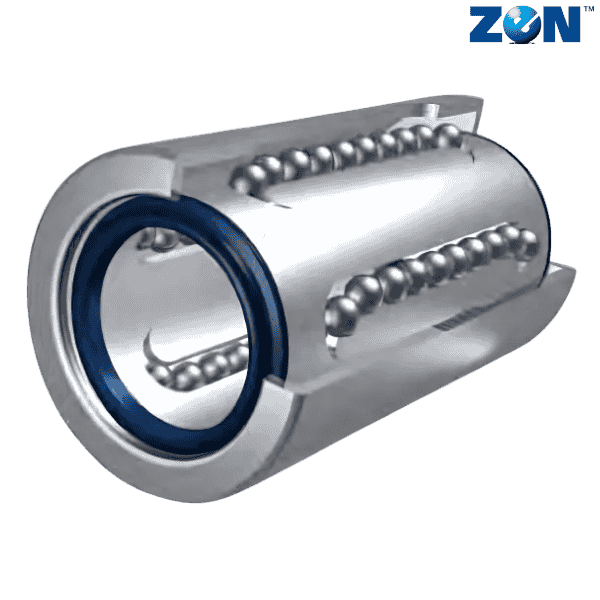

Category - Linear Bearings (KH Series)

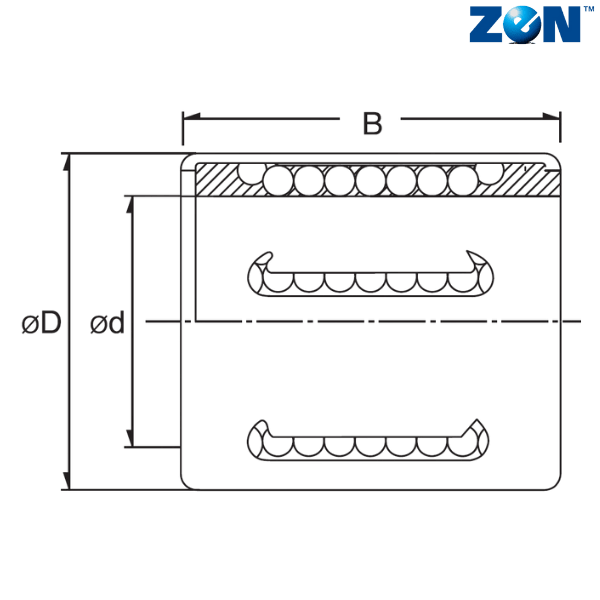

Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 28
Width (B) mm - 30
Dynamic Load Rating (N) - 950
Static Load Rating (N) - 790
Weight (kg) - 0.033
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
