Description
Brand - ZEN
Item Number - KH1630 ZEN

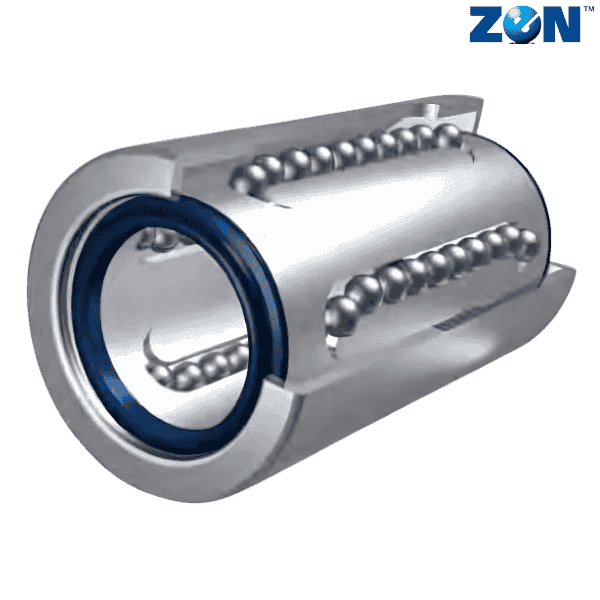

Category - Linear Bearings (KH Series)

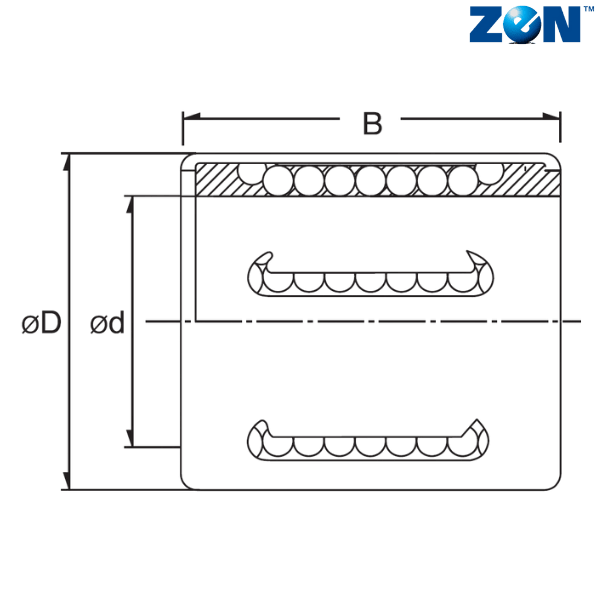

Inner Diameter (d) mm - 16
Outer Diameter (D) mm - 24
Width (B) mm - 30
Dynamic Load Rating (N) - 800
Static Load Rating (N) - 620
Weight (kg) - 0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
