Description
Brand - ZEN
Item Number - KH1228-PP ZEN
Category - Linear Bearings (KH Series)

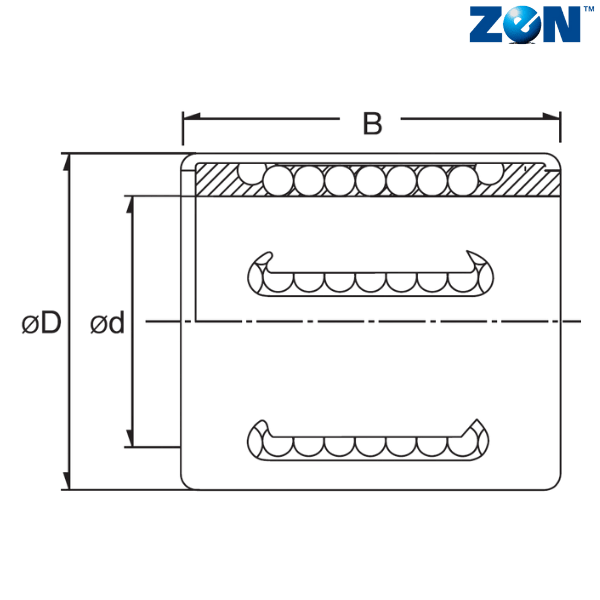

Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 19
Width (B) mm - 28
Dynamic Load Rating (N) - 620
Static Load Rating (N) - 510
Weight (kg) - 0.019
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

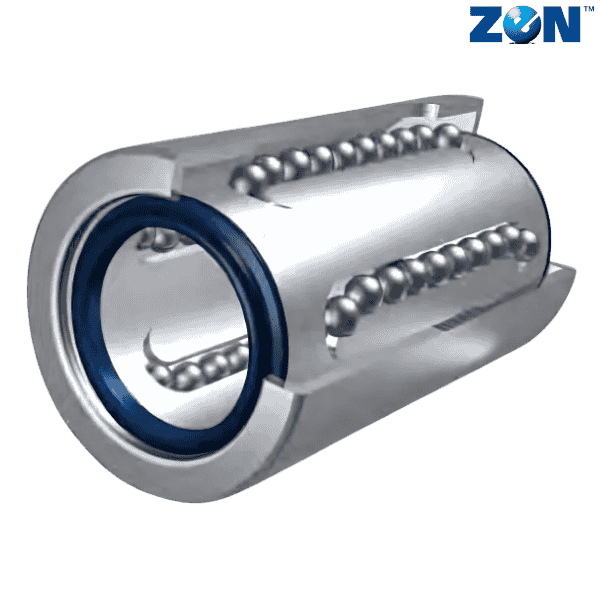

** Images are for representation purposes only
