Description
Brand - ZEN
Item Number - KH1026-PP ZEN

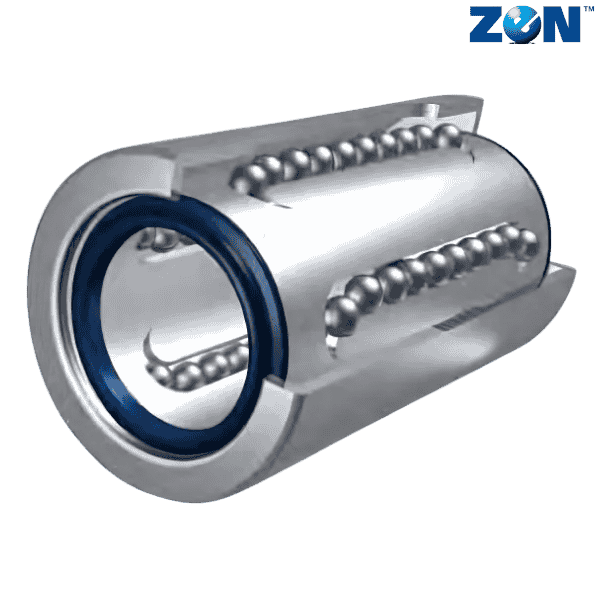

Category - Linear Bearings (KH Series)

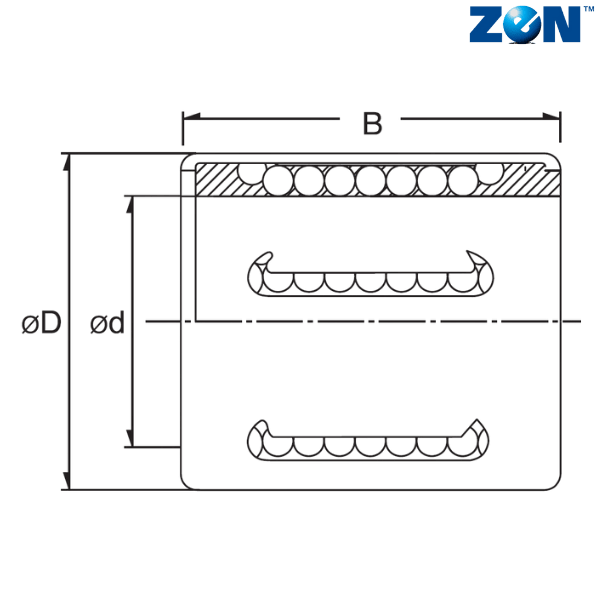

Inner Diameter (d) mm - 10
Outer Diameter (D) mm - 17
Width (B) mm - 26
Dynamic Load Rating (N) - 500
Static Load Rating (N) - 370
Weight (kg) - 0.015
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
