Description
Brand - ZEN
Item Number - KH0824 ZEN
Category - Linear Bearings (KH Series)

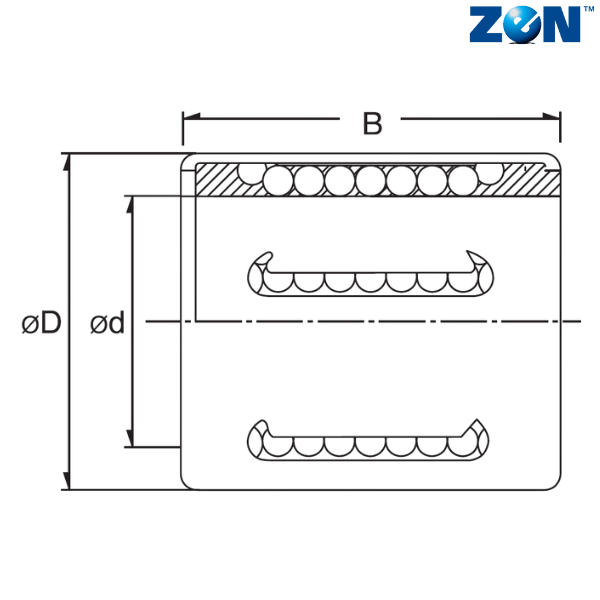

Inner Diameter (d) mm - 8
Outer Diameter (D) mm - 15
Width (B) mm - 24
Dynamic Load Rating (N) - 435
Static Load Rating (N) - 280
Weight (kg) - 0.012
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
