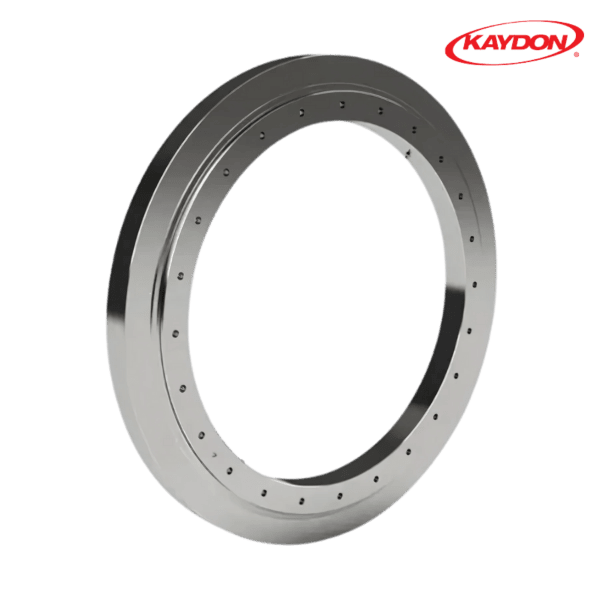

KH-325P KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KH-325P KAYDON
Category - Slewing Ring Bearing (KH Series)

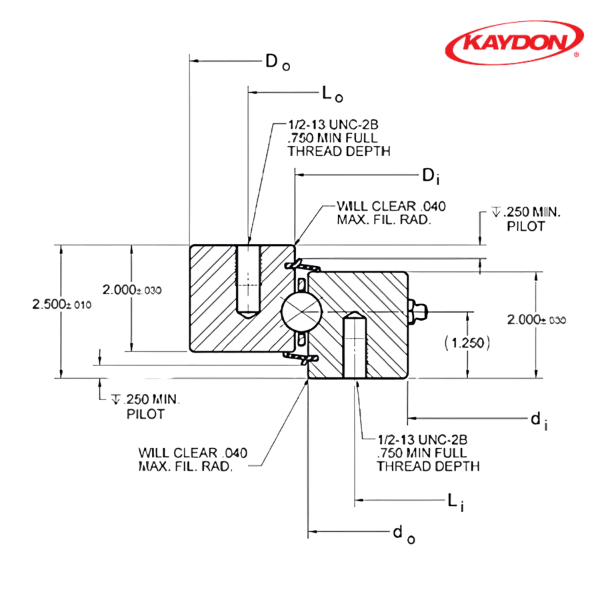

Outline Dimension (Do) inch - 36.7
Outline Dimension (di) inch - 28.5
Outline Dimension (Di) inch - 32.75
Outline Dimension (do) inch - 32.25
Weight (G) kg - 99.79024
Mounting Holes Outer Ring (Lo) inch - 34.5
Mounting Holes Outer Ring (no) - 28
Mounting Holes Inner Ring (Li) inch - 30.5
Mounting Holes Inner Ring (ni) - 28

** Images are for representation purposes only
