KH-275E KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KH-275E KAYDON
Category - Slewing Ring Bearing (KH Series)

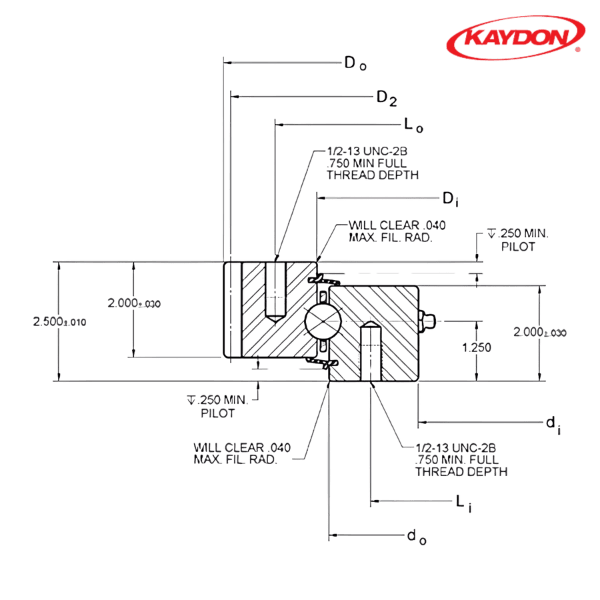

Outline Dimension (Do) inch - 31.667
Outline Dimension (di) inch - 23.5
Outline Dimension (Di) inch - 27.75
Outline Dimension (do) inch - 27.25
Weight (G) kg - 79.3786
Mounting Holes Outer Ring (Lo) inch - 29.5
Mounting Holes Outer Ring (no) - 24
Mounting Holes Inner Ring (Li) inch - 25.5
Mounting Holes Inner Ring (ni) - 24
Gear Data (D2) inch - 31.333
Gear Data (b2) inch - 2
Gear Data (Z2) - 188
Maximum Gear Tooth Load (Fz) lbs - 5700

** Images are for representation purposes only
