Description
Brand - KAYDON

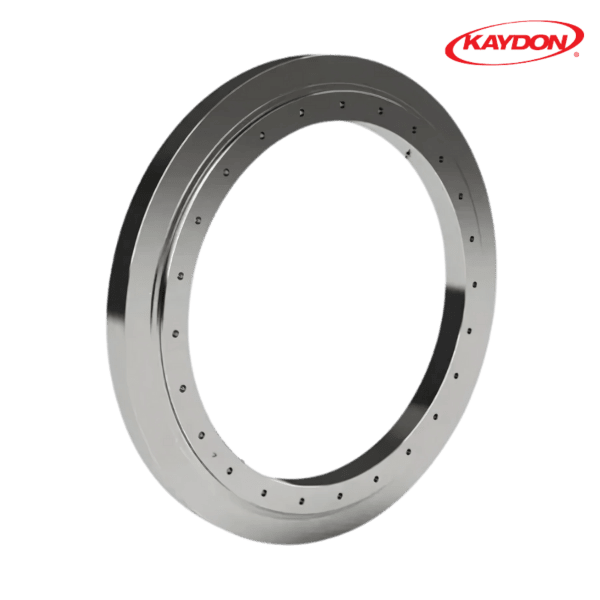

Item Number - KH-225P KAYDON
Category - Slewing Ring Bearing (KH Series)

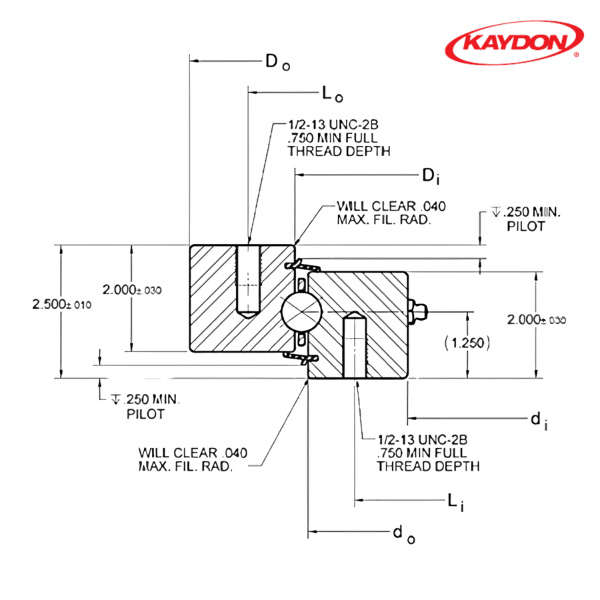

Outline Dimension (Do) inch - 26.7
Outline Dimension (di) inch - 18.5
Outline Dimension (Di) inch - 22.75
Outline Dimension (do) inch - 22.25
Weight (G) kg - 68.0388
Mounting Holes Outer Ring (Lo) inch - 24.5
Mounting Holes Outer Ring (no) - 18
Mounting Holes Inner Ring (Li) inch - 20.5
Mounting Holes Inner Ring (ni) - 18
** Images are for representation purposes only
