KH-166P KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - KH-166P KAYDON
Category - Slewing Ring Bearing (KH Series)

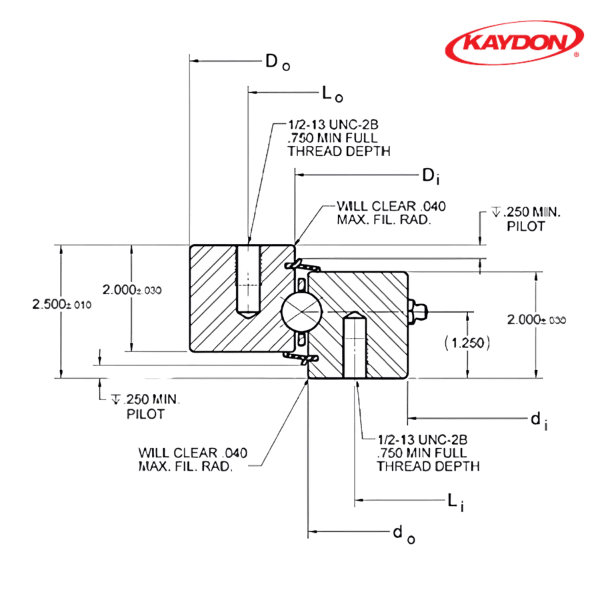

Outline Dimension (Do) inch - 20.5
Outline Dimension (di) inch - 12.75
Outline Dimension (Di) inch - 16.875
Outline Dimension (do) inch - 16.375
Weight (G) kg - 47.62716
Mounting Holes Outer Ring (Lo) inch - 18.875
Mounting Holes Outer Ring (no) - 20
Mounting Holes Inner Ring (Li) inch - 14.375
Mounting Holes Inner Ring (ni) - 20

** Images are for representation purposes only
