Description
Brand - INA
Item Number - KGHK10 PP AS INA
Category - Linear Ball Bearing
Inner (d) MM - 10
Outer (D) MM - 40
Width (B) MM - 26
Inner (d) Inch - 0.3937
Outer (D) Inch - 1.5748
Width (B) Inch - 1.0236
Weight (kg) - 0.07
Seal - 2L - LS-seal at Both Sides
AS - Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

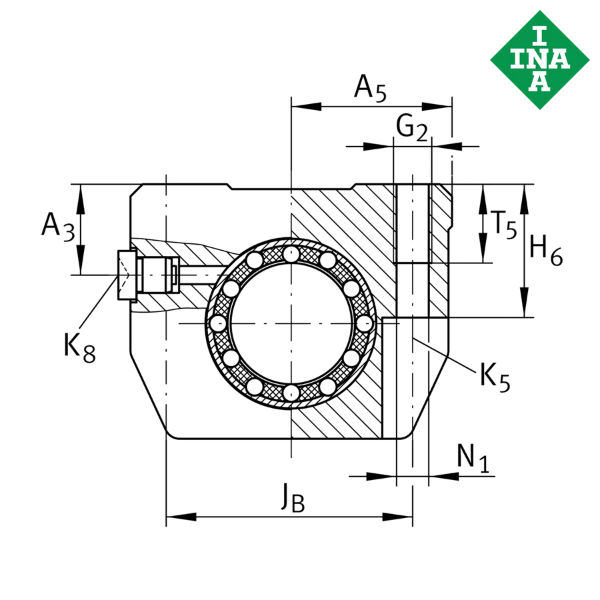

** Images are for representation purposes only
