Description
Brand - INA
Item Number - KGBAO25-PP-AS INA

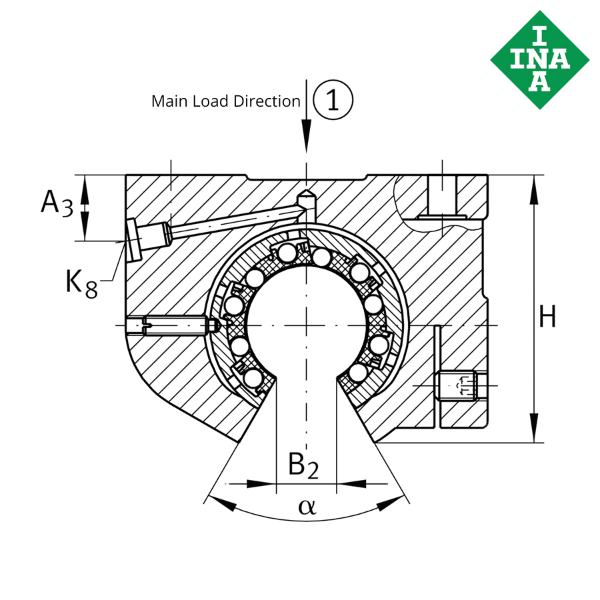

Category - Linear Ball Bearing Unit
Also known as - 0017438640000 KGBAO2558PP AS
Inner (d) MM - 25
Outer (D) MM - 74
Width (B) MM - 58
Inner (d) Inch - 0.9843
Outer (D) Inch - 2.9134
Width (B) Inch - 2.2835
Weight (kg) - 0.35
Seal - 2L - LS-seal at Both Sides
AS - Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing
** Images are for representation purposes only
