KG400XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KG400XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

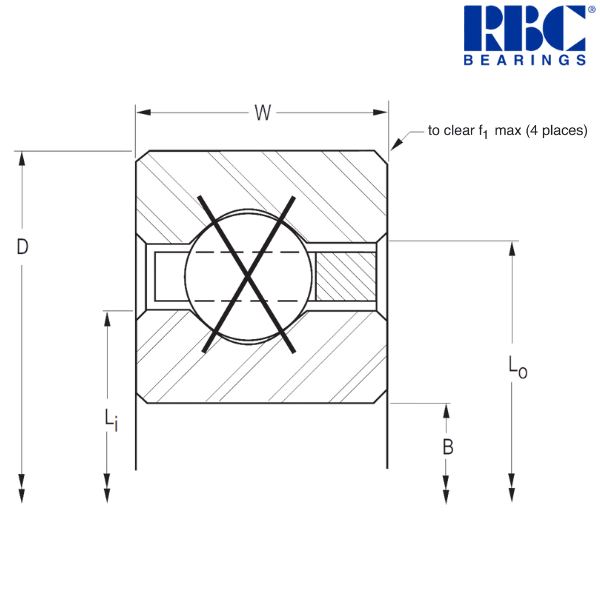

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 40
Outside Diameter (D) inch - 42
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 40.75
Land Diameter of Outer Ring (Lo) inch - 41.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 123
Approximate Weight (lbs) - 30.8
Radial Static Load (lbf) - 67310
Radial Dynamic Load (lbf) - 24332
Thrust Static Load (lbf) - 168300
Thrust Dynamic Load (lbf) - 45770
Moment Static Load (lbf) - 1380000
Moment Dynamic Load (lbf) - 374256

Metric :
-----------------------------------------
Bore Diameter (B) mm - 1016
Outside Diameter (D) mm - 1066.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 1035.05
Land Diameter of Outer Ring (Lo) mm - 1047.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 13.971
Radial Static Load (N) - 299410
Radial Dynamic Load (N) - 108230
Thrust Static Load (N) - 748640
Thrust Dynamic Load (N) - 203600
Moment Static Load (Nm) - 155920
Moment Dynamic Load (Nm) - 42290

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
