KG375XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KG375XP0*RBC

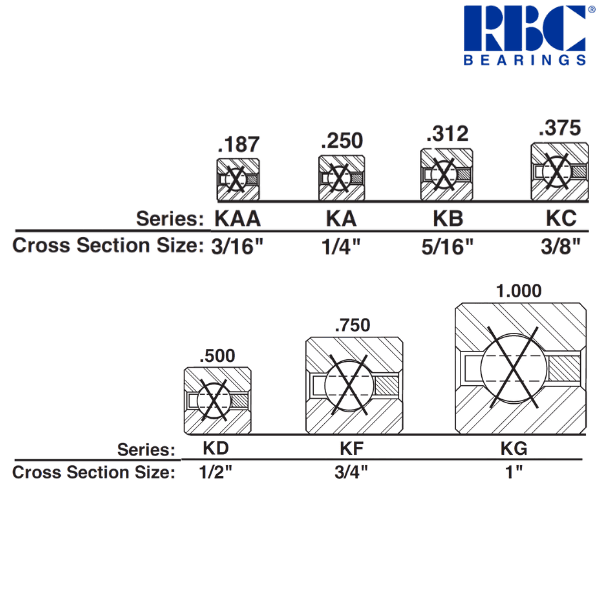

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

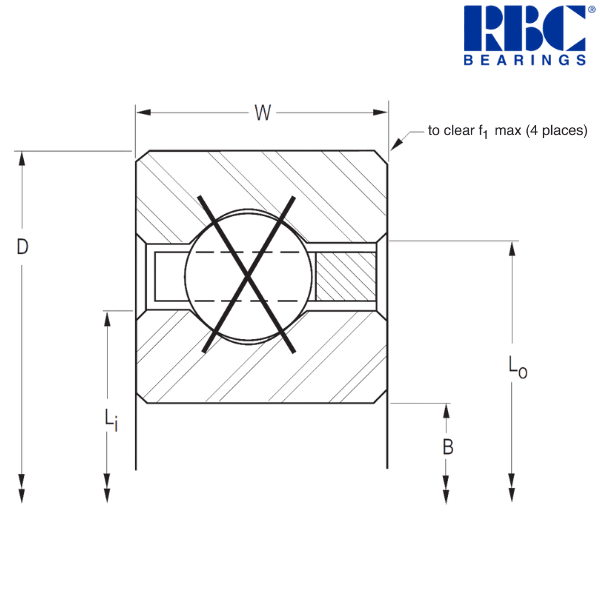

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 37.5
Outside Diameter (D) inch - 39.5
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 38.25
Land Diameter of Outer Ring (Lo) inch - 38.75
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 116
Approximate Weight (lbs) - 29
Radial Static Load (lbf) - 63205
Radial Dynamic Load (lbf) - 23589
Thrust Static Load (lbf) - 158000
Thrust Dynamic Load (lbf) - 43870
Moment Static Load (lbf) - 122000
Moment Dynamic Load (lbf) - 341392

Metric :
-----------------------------------------
Bore Diameter (B) mm - 952.5
Outside Diameter (D) mm - 1003.3
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 971.55
Land Diameter of Outer Ring (Lo) mm - 984.25
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 13.166
Radial Static Load (N) - 281150
Radial Dynamic Load (N) - 104929
Thrust Static Load (N) - 702819
Thrust Dynamic Load (N) - 195143
Moment Static Load (Nm) - 13790
Moment Dynamic Load (Nm) - 38580

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
