KG350XP0 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - KG350XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

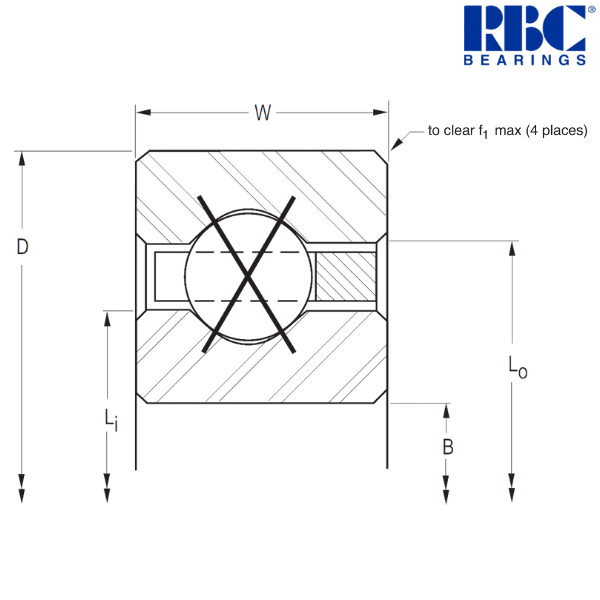

Bore Diameter (B) inch - 35
Outside Diameter (D) inch - 37
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 35.75
Land Diameter of Outer Ring (Lo) inch - 36.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 108
Approximate Weight (lbs) - 27.1
Radial Static Load (lbf) - 59100
Radial Dynamic Load (lbf) - 22845
Thrust Static Load (lbf) - 147700
Thrust Dynamic Load (lbf) - 41970
Moment Static Load (lbf) - 1064000
Moment Dynamic Load (lbf) - 308527

Metric :
-----------------------------------------
Bore Diameter (B) mm - 889
Outside Diameter (D) mm - 939.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 908.05
Land Diameter of Outer Ring (Lo) mm - 920.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 12.292
Radial Static Load (N) - 262890
Radial Dynamic Load (N) - 101620
Thrust Static Load (N) - 657000
Thrust Dynamic Load (N) - 186690
Moment Static Load (Nm) - 120220
Moment Dynamic Load (Nm) - 34860

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
