KG325XP0 RBC

Brand - RBC
Item Number - KG325XP0*RBC

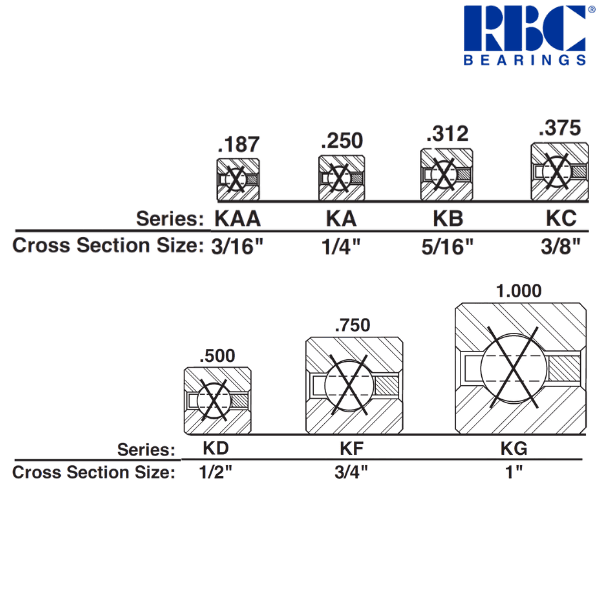

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

Imperial :
-----------------------------------------

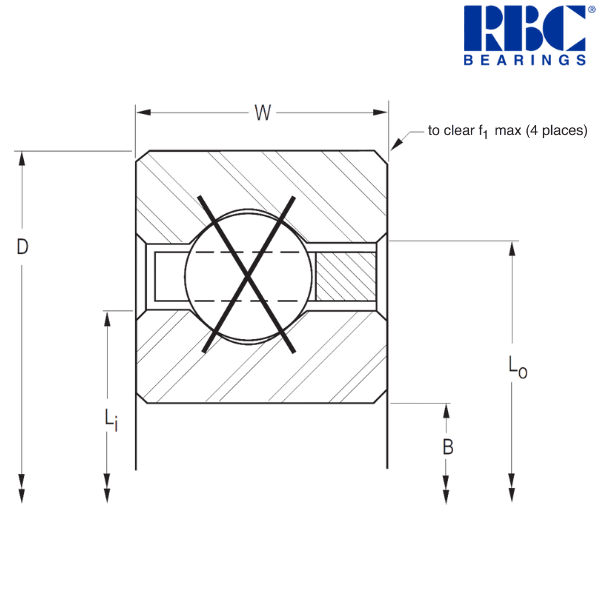

Bore Diameter (B) inch - 32.5
Outside Diameter (D) inch - 34.5
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 32.25
Land Diameter of Outer Ring (Lo) inch - 33.75
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 101
Approximate Weight (lbs) - 25.2
Radial Static Load (lbf) - 54995
Radial Dynamic Load (lbf) - 22023
Thrust Static Load (lbf) - 137450
Thrust Dynamic Load (lbf) - 39975
Moment Static Load (lbf) - 926400
Moment Dynamic Load (lbf) - 277534

Metric :
-----------------------------------------
Bore Diameter (B) mm - 825.5
Outside Diameter (D) mm - 876.3
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 844.55
Land Diameter of Outer Ring (Lo) mm - 857.25
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 11.441
Radial Static Load (N) - 244630
Radial Dynamic Load (N) - 97963
Thrust Static Load (N) - 611408
Thrust Dynamic Load (N) - 177818
Moment Static Load (Nm) - 104670
Moment Dynamic Load (Nm) - 31360

Description of Suffixes and Prefixes :
-----------------------------------------
K - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
-----------------------------------------
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

*The alphanumeric identification system is used under license.
** Images are for representation purposes only
