KG325AR0 RBC

Brand - RBC
Item Number - KG325AR0*RBC

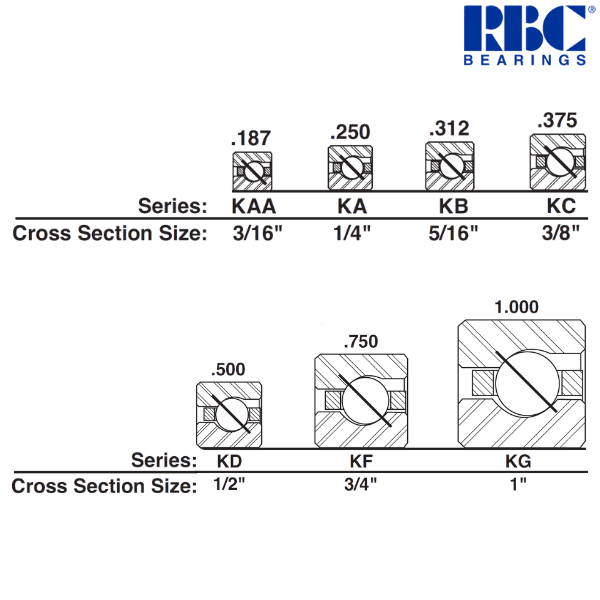

Category - Angular Contact, A-Type Thin Section Ball Bearings

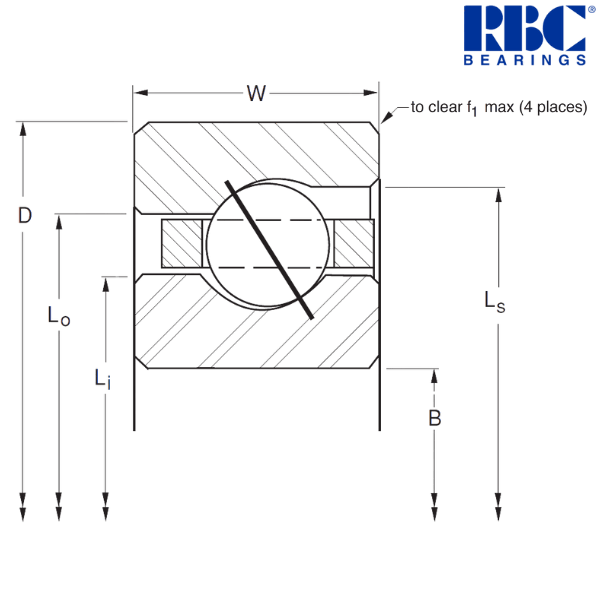

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 32.5 inch
Outside Diameter (D) - 34.5 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 33.242 inch
Land Diameter of Outer Ring (Lo) - 33.758 inch
Land Diameter of Counter Bore (Ls) - 34 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 134 pcs.
Approximate Weight - 25.2 lbs
Radial Static Load - 63500 lbf
Radial Dynamic Load - 17335 lbf
Thrust Static Load - 183300 lbf
Thrust Dynamic Load - 48430 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 825.5 mm
Outside Diameter (D) - 876.3 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 844.35 mm
Land Diameter of Outer Ring (Lo) - 857.45 mm
Land Diameter of Counter Bore (Ls) - 863.6 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 11.441 kg
Radial Static Load - 282462 N
Radial Dynamic Load - 77100 N
Thrust Static Load - 815539 N
Thrust Dynamic Load - 215427 N

Description of Suffixes and Prefixes :
K - No seals or shields
G - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
